Wow, looks really good! Hey, what is that hole on the side of the mount? Is that tapped for an M3? That might be exactly what I was hoping for. Mount looks thick too. Nice

You need help :lol:



Quote from Mike: "I added holes on the side to allow use of turnbuckles for those installing in a G2R or G3R"

Matt's truck is not going to see action that's why River said "ha ha funny".

If it's going to be run, it will be on Matt's sodded yard and I'm taking bets on that :lol::lol:.

I see... That's sad... :no:

or the local golf course!!

Finn- the side holes are indeed m3

Harold or anyone else with a new mount- can you post some dimensions of this thing. I'm curious if it will fit in a project in mind...

can't till tomorrow evening, if nobody else posts the info by then I will:yes:

Thanks! Hope Mike gets some in soon...

e.t.a. on more..... 2013!!!:lol:

Your bad.


Your bad Harold. You just had an itch that you could not reach, didn't you.

just busting nitrofluffer's balls a little. Cash reigns king, gotta have it at the right time!:intello:

Yep, I just decided a little too late that I want to try one out instead of make one myself...:whip:

Now get me some damn dimensions!:whistle:

82mm tall 47mm wide 42mm front to back

Finn- I got a 52t spur to fit with a little dremeling. I'll post pics tomorrow

That looks like something I made, only better :lol: :yes:

With a little design tweakage, I reckon that could be made to bolt in place of the tranny on a maxx based truck- or to the insides of the TVPs on a savy...

That was a good guess then.. :lol:

I'll have to watch the video when I get home as youtube is blocked at work :no:

Thanks Harold! News keeps getting better and better. :)
Would you mind measuring how tall that M3 hole is up from the bottom?

@AA:

I saw where he said the bit about turnbuckles, but I've never had a Gmaxx, so didn't know what the hell that meant. The holes can't be seen in the pix in the store. Funny tho, as that's just what I wanted. :)

Wicked looking f-offraod! Though I have to say the steering looks a bit out there. Is that the same set up as 1:1?

I like hill climbs :yes:

54mm from the bottom of the mount to the center of the m3 hole on the side of the motor mount plate

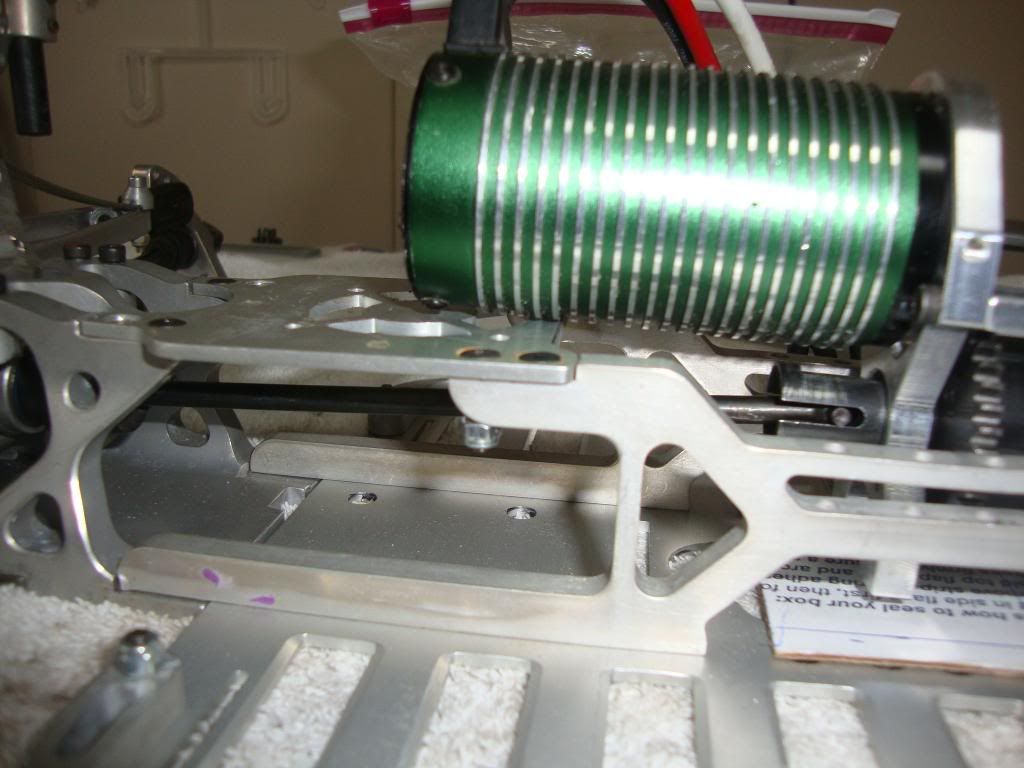

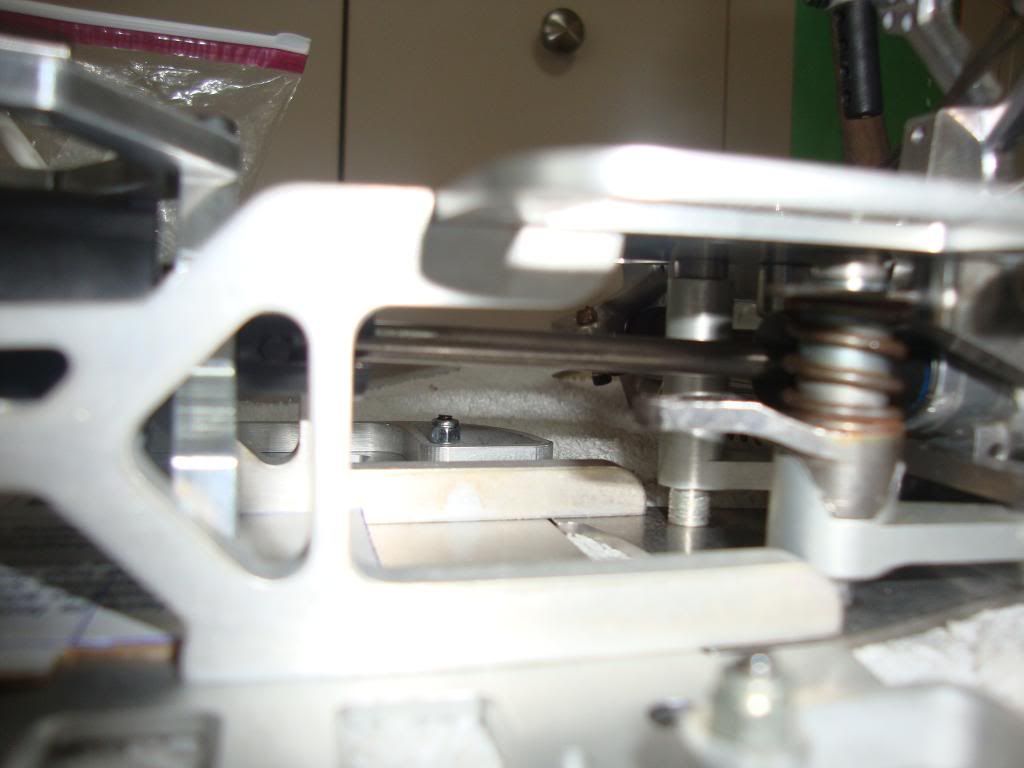

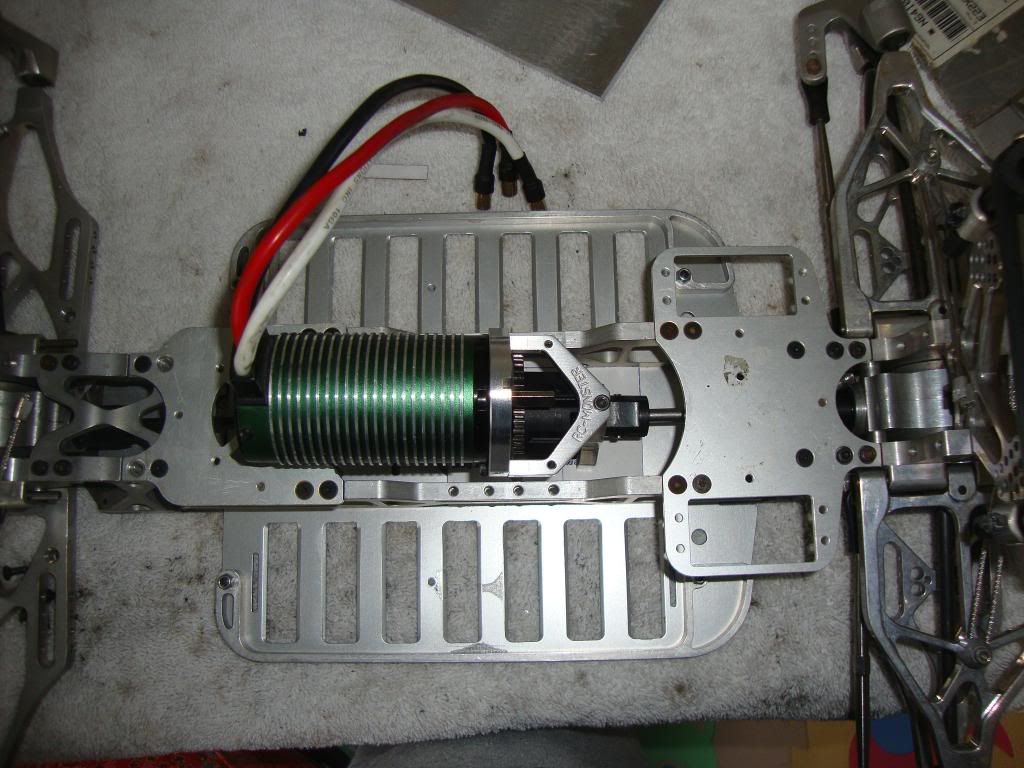

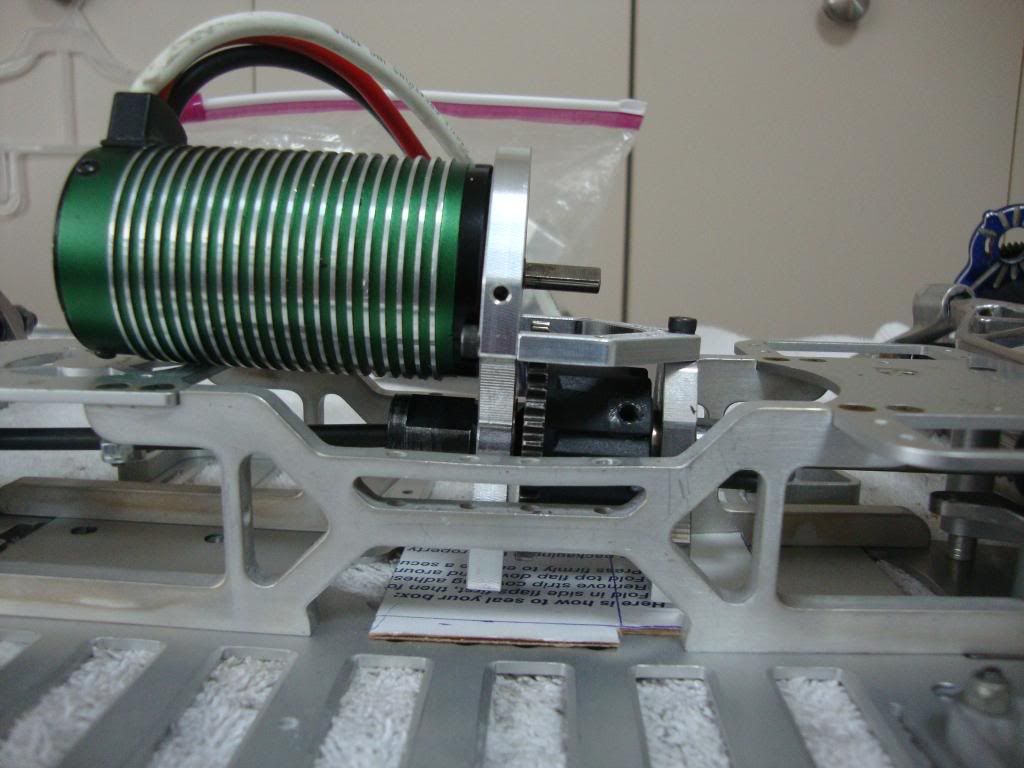

Here are some pictures of my mount on a gmaxx. These are just mock-up pics:

http://i256.photobucket.com/albums/h...s/DSC05440.jpg

http://i256.photobucket.com/albums/h...s/DSC05441.jpg

http://i256.photobucket.com/albums/h...s/DSC05442.jpg

http://i256.photobucket.com/albums/h...s/DSC05443.jpg

I moved the mount forward so I can use existing dogbone from my parts bin. For this installation, I used a 132mm(UE thunder + mono dogbone) for the rear and 70mm (UE Titanium dogbone for the front. CD is Ofna with a 44T spur.

Why raise the motor/CD? I think it would be simpler and better to just cut the rear upper plate, at least that's what I would have done if I hadn't gotten a mounting plate with my "prototype" CD/motor mount.

I think if he moves the mount more forward he wont have to cut anything . Hell have a lower cog and more weight up front which I found to be more desirable when running a cd to keep the front tires from unloadind from brushless power. Or even running a spool to help keep the front down. TNot to mention a better drivline angle. The savage xl bone is definatly longer than the UE bone I just wonder if it will work with a standard 57.5mm t-maxx bone.

I chose to mount it that way in order to use available dogbones from my parts bin. I used UE's dogbone for the thunder with the mono in the rear and UE's 70mm titanium dogbone in the front. There is still enough space to drill new mounting holes if I decide to use different size dogbones but for now, this setup will do.

Center diff is an Ofna with 44T spur and a 15T RCM pinion. I'll be replacing the diff pinion with an Ofna 10T to lower my top speed. Right now, the diffs are buggy diffs(43/13). I'll be running this on 5S :lol::.

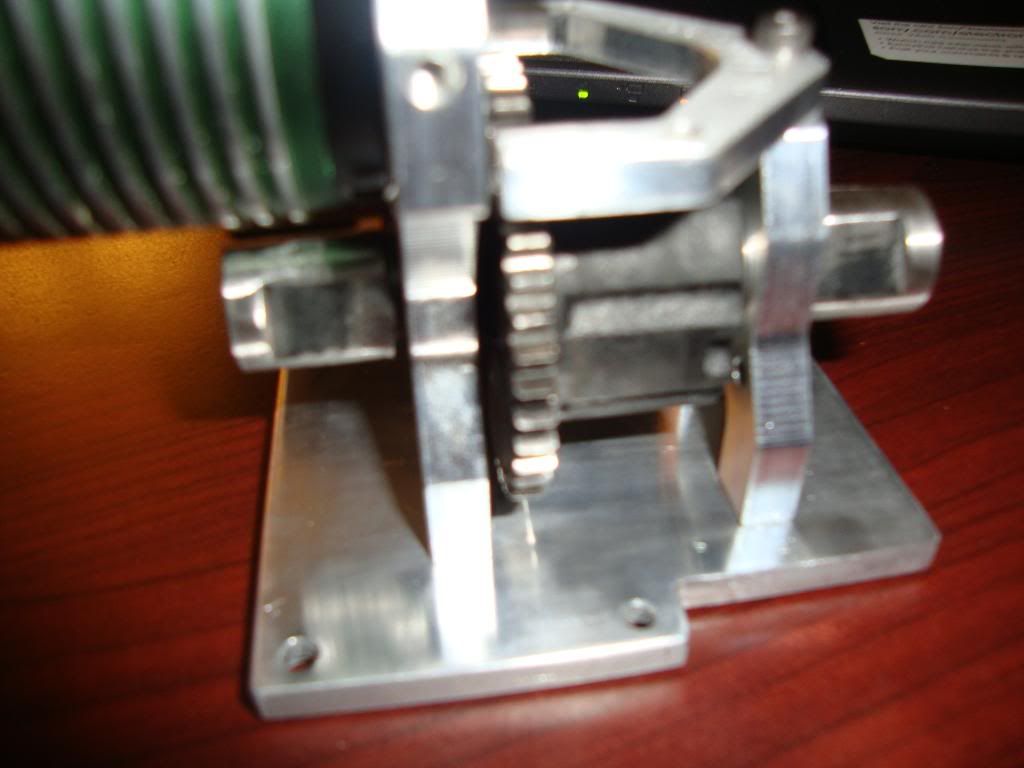

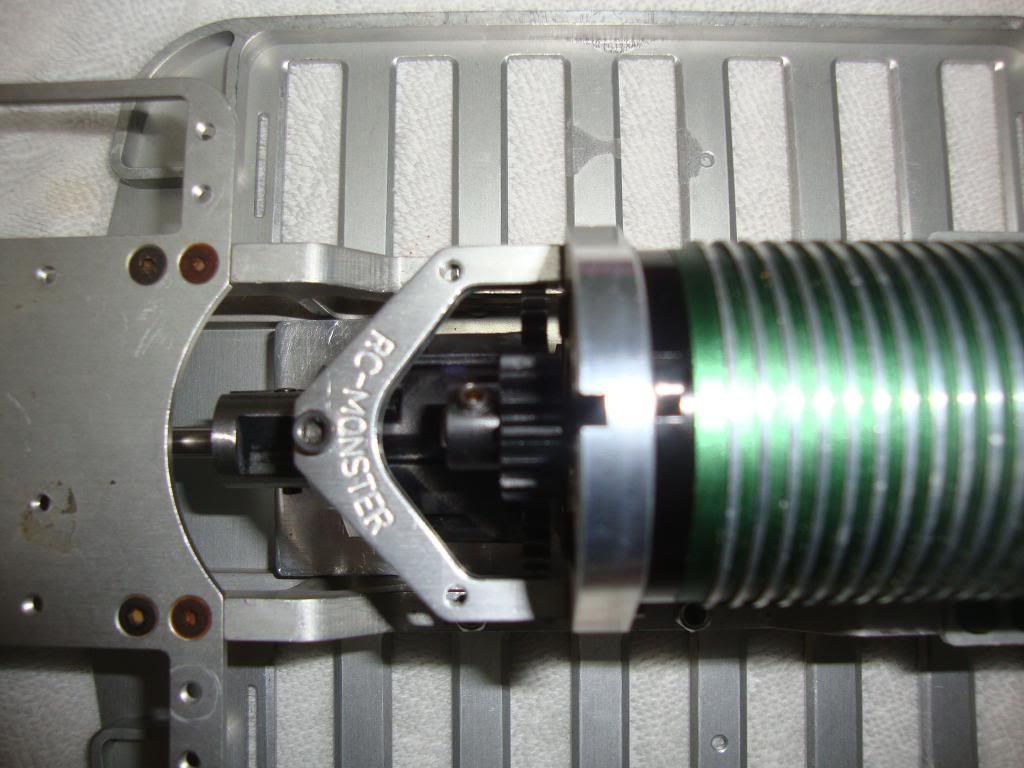

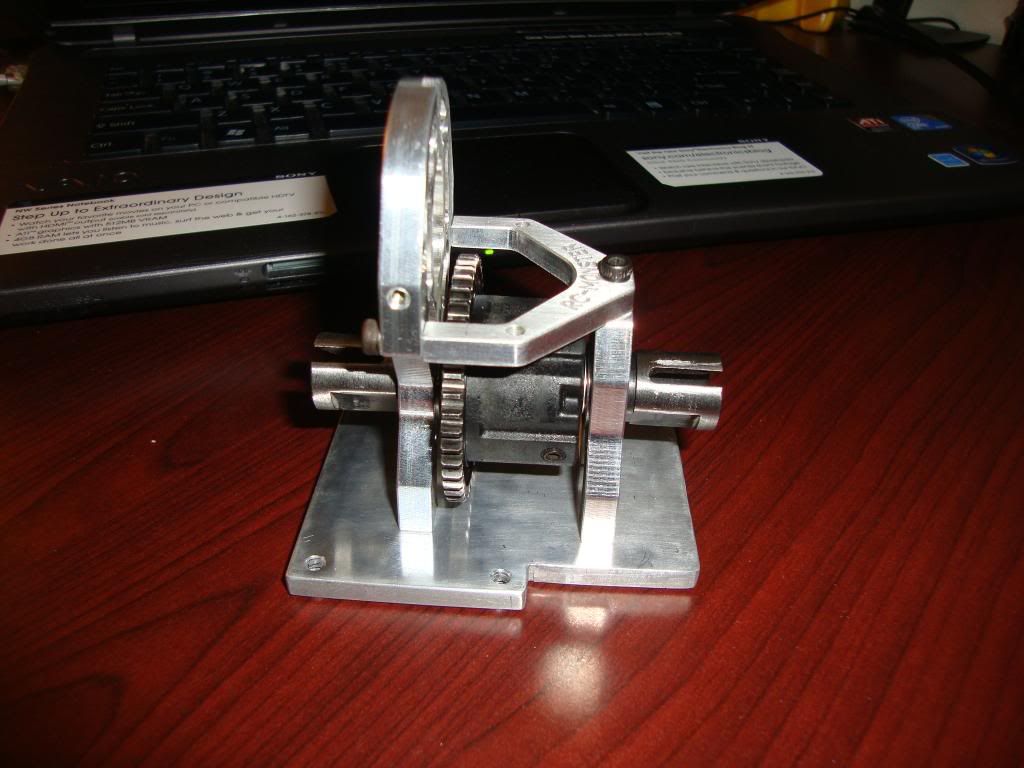

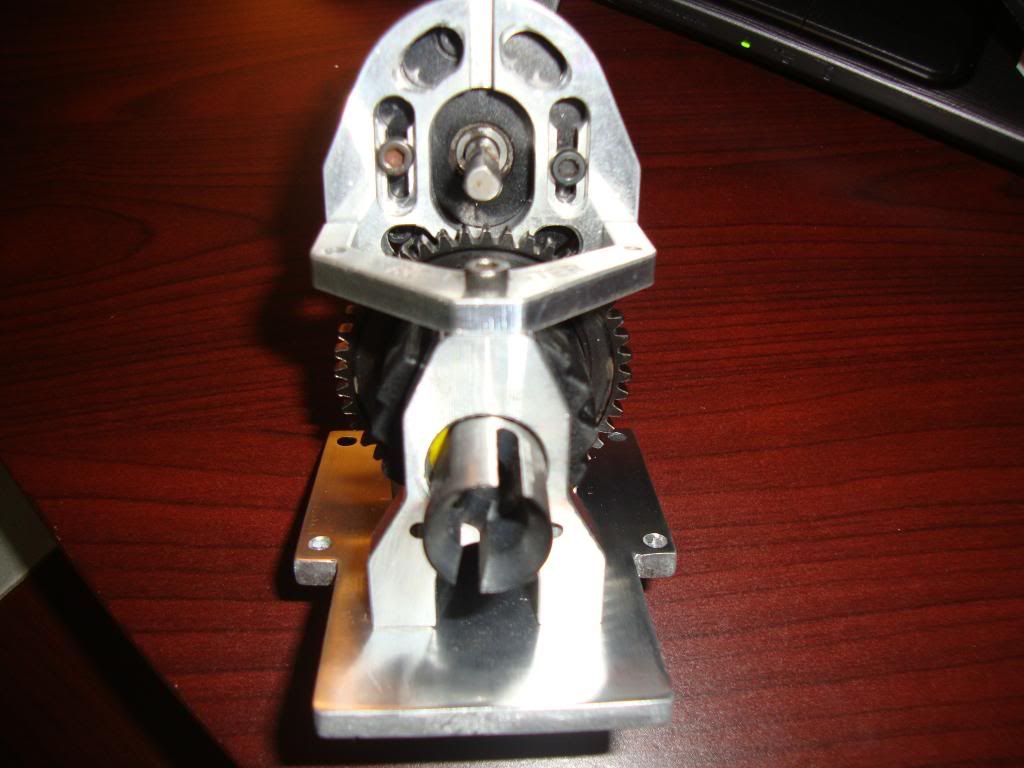

Here are pics of the finished assembly:

http://i256.photobucket.com/albums/h...s/DSC05460.jpg

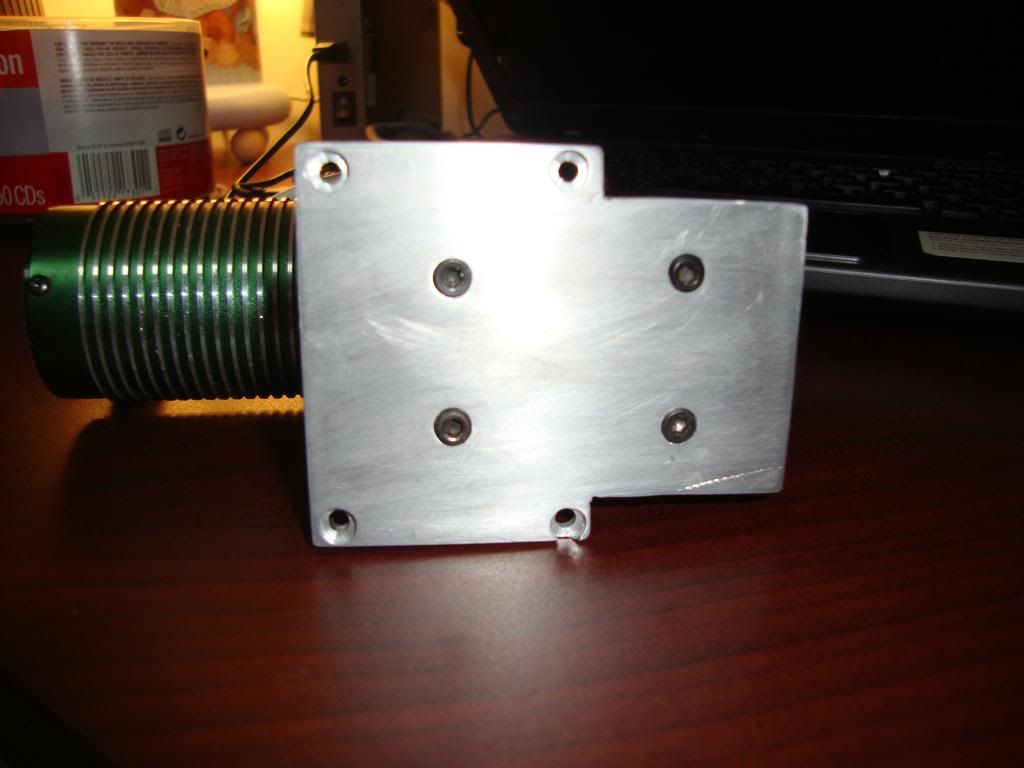

I used a 7/32 mill bit to make the recessed holes.

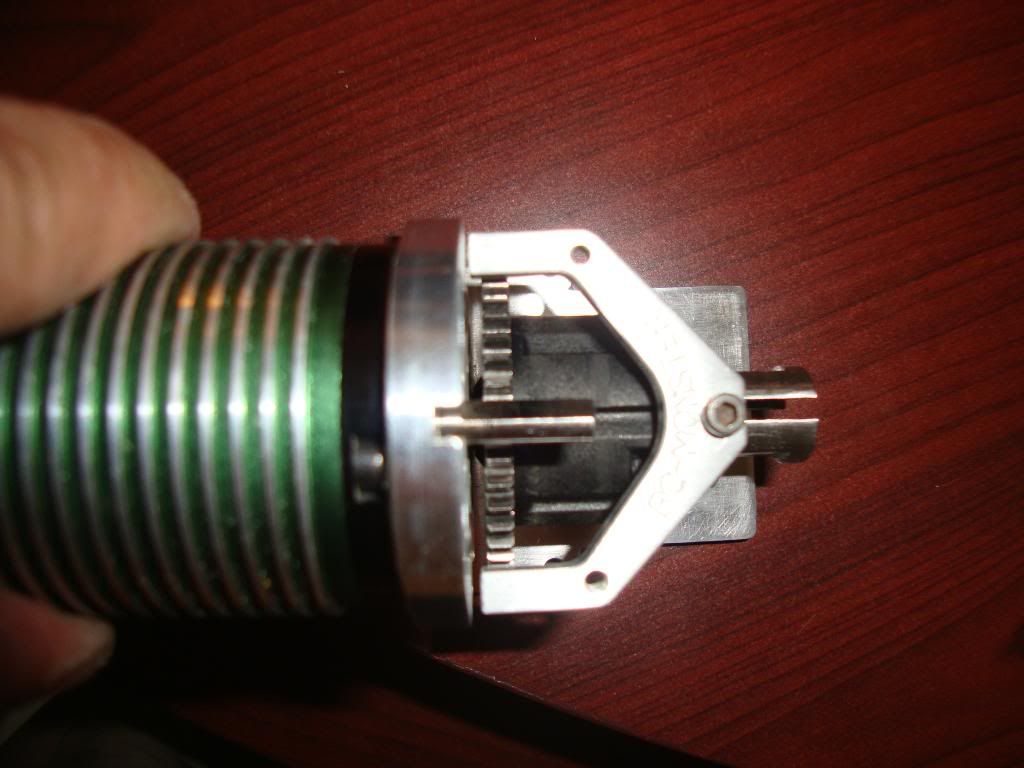

http://i256.photobucket.com/albums/h...s/DSC05461.jpg

http://i256.photobucket.com/albums/h...s/DSC05462.jpg

http://i256.photobucket.com/albums/h...s/DSC05463.jpg

http://i256.photobucket.com/albums/h...s/DSC05469.jpg

http://i256.photobucket.com/albums/h...s/DSC05481.jpg

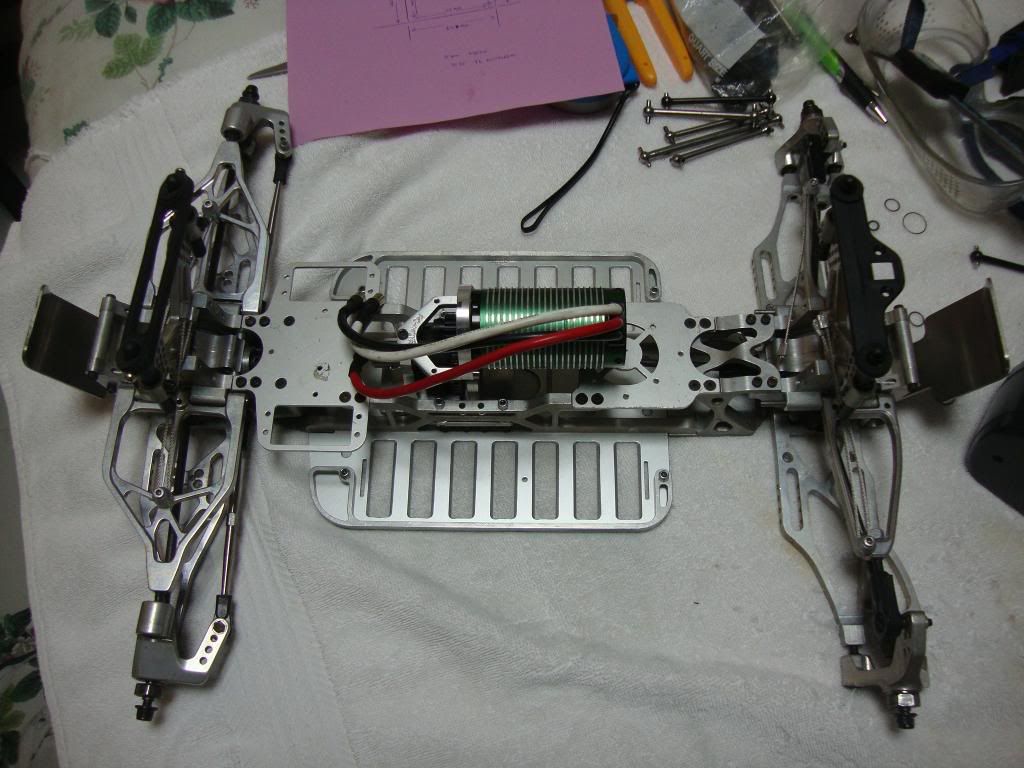

http://i256.photobucket.com/albums/h...s/DSC05482.jpg

http://i256.photobucket.com/albums/h...s/DSC05483.jpg

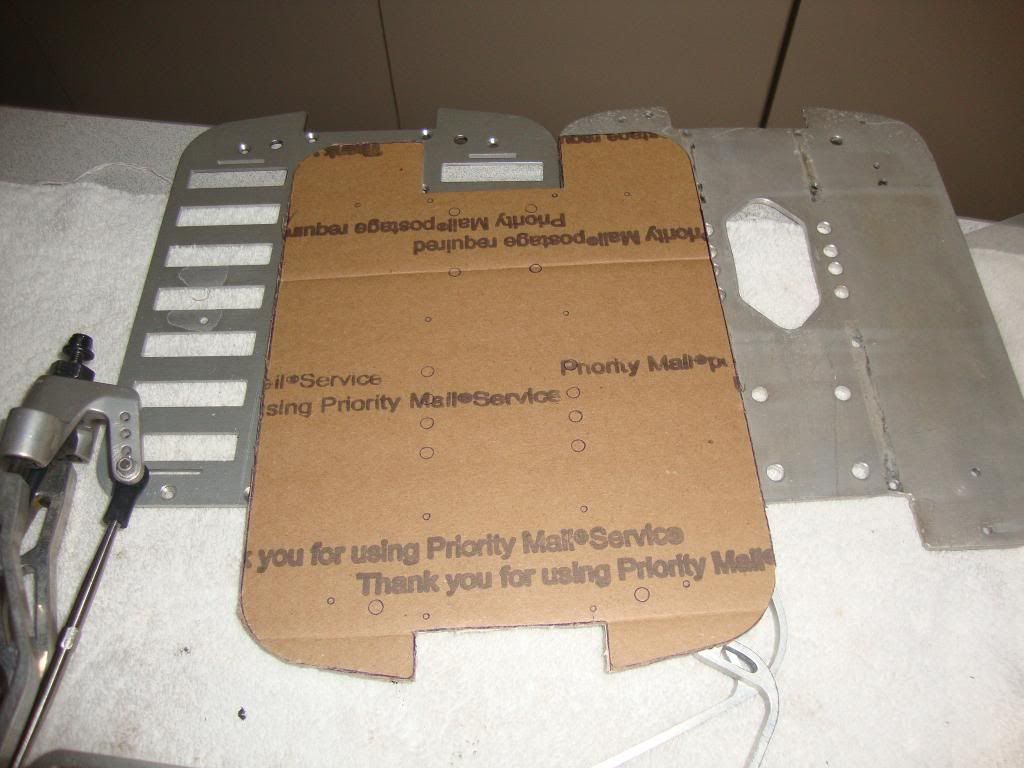

I'll be making a new chassis plate out of 7075T6 aluminum. It will be longer by about 2 inches compared to the stock plate. Here's the template I'll be using:
http://i256.photobucket.com/albums/h...s/DSC05356.jpg

Looks good Lito! Very impressed with this mount!!

Thanks bro. I'm glad I bought the dremel polishing/grinding kit(150 attachments) while on sale at the Navy Exchange ($19.99) :party:. It came handy for this project.

Looks Like it will work good lito. The savage dogbone can be had for ~$12 shiped. Heres what I had in mind: not too sure if the g1 and g2 chassis are same demension wise though..
If I mount it this far up it might work without a chassis adapter plate. But I am not sure it will work until I get a diff with a 44 tooth gear. It might be to far foward but I have lots of room to move it back but a adapter like litos most likely will also have to be made.

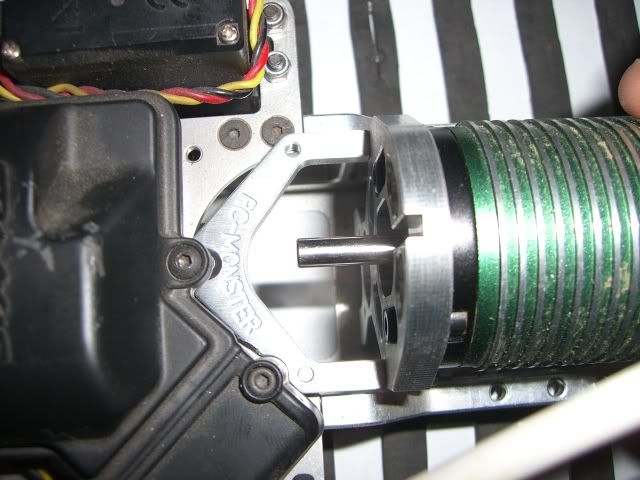

http://i153.photobucket.com/albums/s...x/CIMG2774.jpg
http://i153.photobucket.com/albums/s...x/CIMG2774.jpg
http://i153.photobucket.com/albums/s...x/CIMG2775.jpg

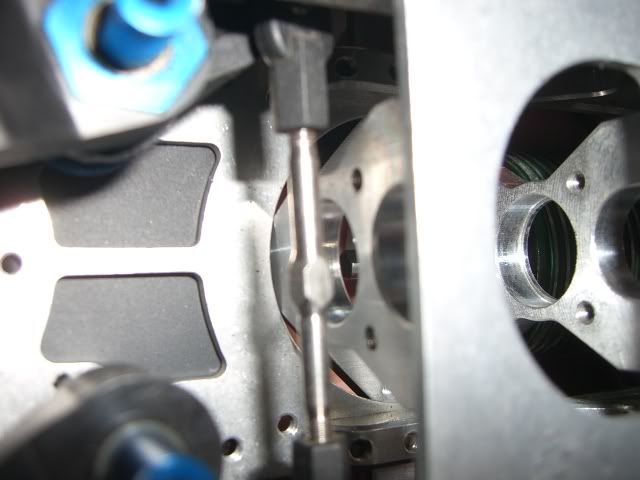

http://i153.photobucket.com/albums/s...x/CIMG2776.jpg

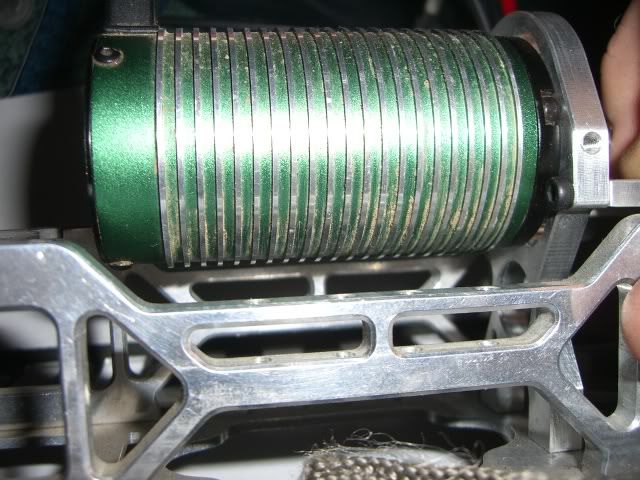

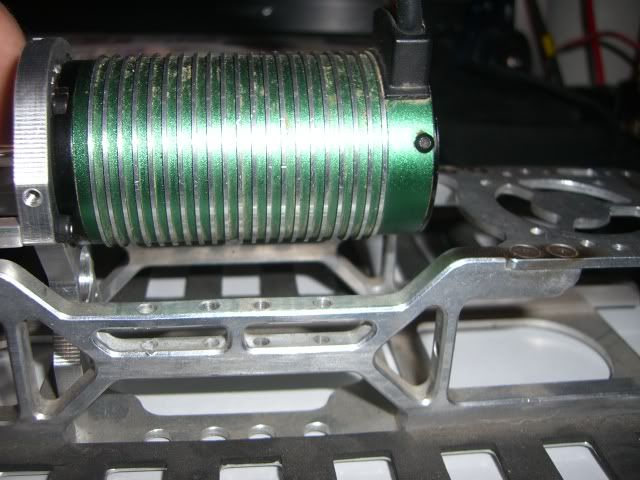

It is almost as if the braces welcome the motor where they go down.Notice how the motor sits as low as possible for better cog and driveline angles.
http://i153.photobucket.com/albums/s...x/CIMG2773.jpg
http://i153.photobucket.com/albums/s...x/CIMG2777.jpg
The savage xl bone is ~141mm compared to the ue 132mm mono dogbone so I am not sure if its long enough to make this setup possible but it will move the assembly ~9mm foward more which isnt much. Anybody got a center diff with a 44t steel gear they want to sell? My ofna 46tooth hyper diff is just a hair to wide.

Just for clarification, pretty much any CD will fit?

The 44T spur will hit the x-braces if it sits low unless the G3 chassis is a bit wider than the G1. This is the reason why I made the mounting plate. I also tried a Kyosho 46 and Ofna 48T spurs but the 44T works the best unless I use a CNC in making the mounting plate holes.

Well my 46 tooth wont fit in between the rails and when in the mount it seems to not be wide enough so there is alot of foward and back movent. This is a older hyper 7 cd.

Do the 46 and 48T spurs fit in the RCM mount tho? I'll be using this in a different application.

Nice work on the CD mounting plate George... very clean, very neat...:yes:

That setup is looking good also... would be possible for you to dremel a little of the material away to facilitate the 46 spur? or would you rather not? Nice to see you could get the COG that low...

I want to say they are exact but maybe your braces are thicker than mine?? They look like they might be. The 46 tooth would fit with a little bit of clearencing but I want to see if a 44 tooth will fit before I do that.

Mike made this mount in order to fit his Slipperential in which uses a 46T Mod1 spur. I'm not sure I understand where the mount needs to be clearanced to fit the 46T Ofna. Pics?

Thanks. I'll be lowering by adding 3mm spacers once I have longer screws :lol::lol:.

The 46 and 48 will fit if the mount is raised. I tried 44, 46, 48, and 52T spurs but 44T fits better than the rest on my G1 chassis.

The x-braces opening/gap on my G1 chassis is 46.2mm measured with my digital caliper.
