CAD work
show it if you got it:yes:
http://i152.photobucket.com/albums/s...head/Neu-1.jpg http://i152.photobucket.com/albums/s...head/Neu-2.jpg http://i152.photobucket.com/albums/s...head/Servo.jpg http://i152.photobucket.com/albums/s...beadlock-2.jpg http://i152.photobucket.com/albums/s...beadlock-3.jpg http://i152.photobucket.com/albums/s...Beadlock-1.jpg http://i152.photobucket.com/albums/s...eriesblade.jpg http://i152.photobucket.com/albums/s...rieswheels.jpg i love those beadlocks:oh: lets see what you got |
Love the bead locks!!! Well done...:yes:
|
thank you, someone give me more ideas to make :D
|
Any possibility in making bead locks for 1/8 buggy? If someone could, they would sell like hot cakes.
|
i have no means to make them, but i can design them :D
|
Maybe your ideas will inspire someone to make some! Can you imagine the demand for 1/8 buggy beadlocks....
|
true.... ill get to work then :D, dish wheels or a design?
|
I know cadima here on the forums does some amazing work in CAD. He designed a whole CRT if I remember correctly, as well as a whole center differential. :yes: You should try designing a slipperential... a differential with a slipper built in. :yes: I am sure Mike has a patent on it since he is the one who originally designed/makes it, so no one else can make it, but I am sure it would be fun to design a similar version. :wink:
|
i was thinking about that
|
i need a pic of a diff cup though
|
Quote:
Either....but, be creative!!!!! |

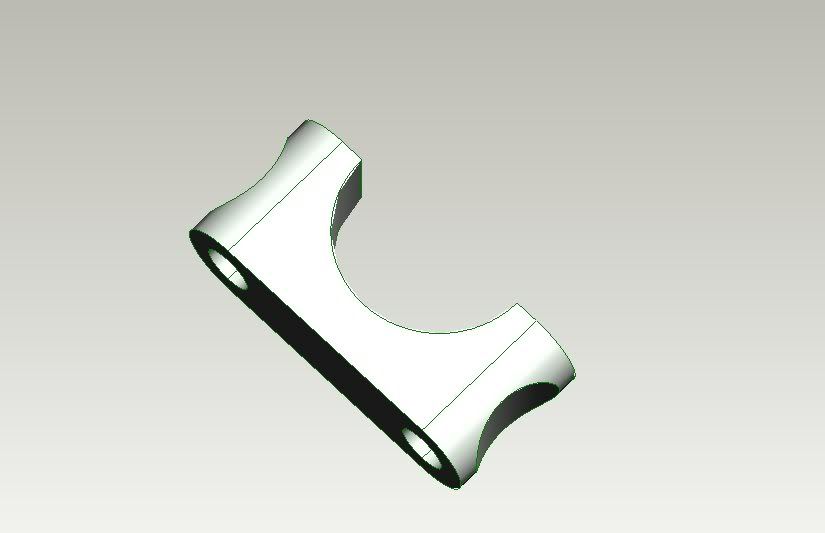

Motor mount please for a Hyper ST and X1CR but with the Motor down the centre line over the rear drive shaft with custom top plate...
|
Someones got alot of time on their hands. :whistle:
|
Quote:
|
need some pics and dimensions
|
i got the same program courtesy of school :)
i find it really difficult to make something im visualising. easy when im working off something solid so i can understand. my deam is to redraw my entire car and make an animation of it being built, screws and all, twisting etc. i recon that would be freaky and sick at the same time :) |
|
Hi,
Quote:
Basically, it involves moving the center diff forward, tuck the batteries in saddle pack configuration closer to the center & motor at the center above the batteries. A top deck is put in to compensate for the torque rods that will not be there. At the time, I was dreaming of running 8S 4000mah using a BK3095. Unfortunately, still dreaming... Regards, Joe Ling |
|
mike you better be watching in case you need a designer, "will work for lipos" :D

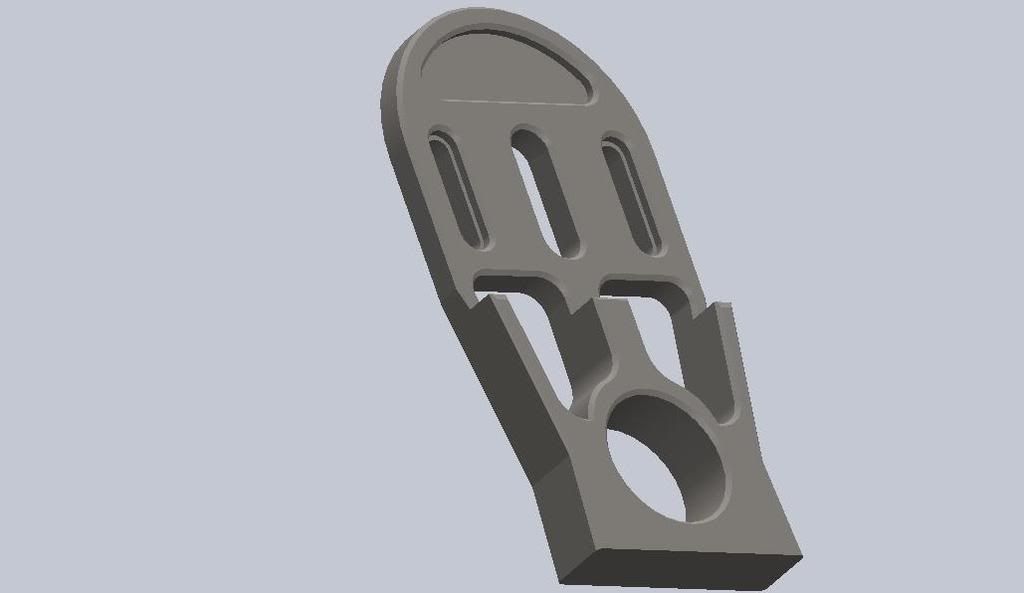

let me know what you think guys |

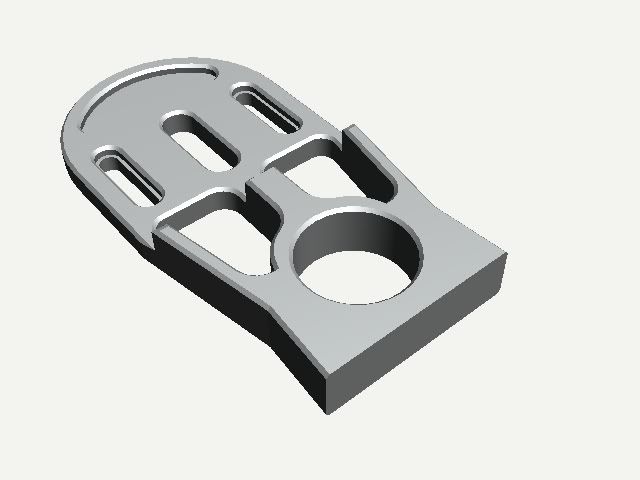

Keep in mind cutter radii. If you look at your part, the "eye drops" I'll call them (the two lightening holes on either side of the larger hole at the bottom of the part) will be very tough to machine. Otherwise it looks buildable
|
we have a mini cnc router that used a 2mm bit- all the radii are 1.5 or more, should be fine
|
Quote:
Quote:
what guys no commentary?:na: |
You forgot holes and a top plate... But... :yes:
|
i dont have a hyper st so i wouldnt know hole spacing
|
Wing it :yes: You dont need exact dimensions just for a rough design- think of it as sketching some ideas on piece of paper, only its on a computer instead. Exact dimesions can be corrected later on when you know them better. Looks kinda similar to the center diff unit mike made for the flm chassis:
http://www.rc-monster.com/forum/showthread.php?t=10233 Same concept really. |
very nice :yes:
|

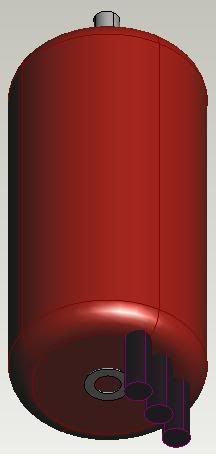

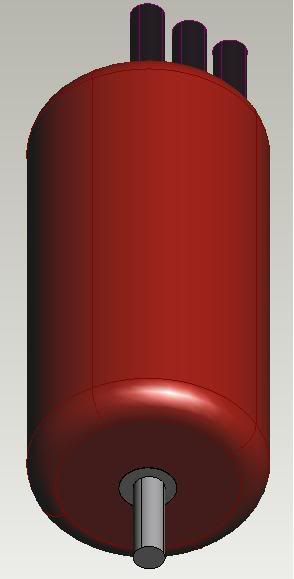

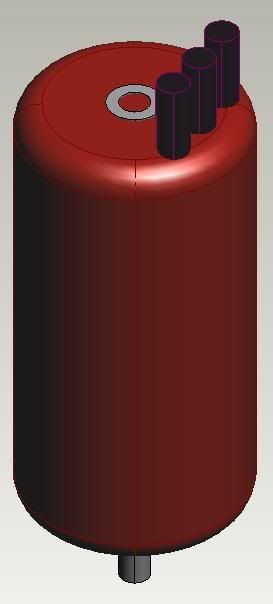

Decided to take a shot at the CAD program myself. Got a few tips from ben and from a few vids. Here is a rough draft of my brushless motor I made...
http://i301.photobucket.com/albums/n...RCU/motor1.jpg http://i301.photobucket.com/albums/n...RCU/motor2.jpg http://i301.photobucket.com/albums/n...RCU/motor3.jpg |
dont look half bad ryan :D
|
Thanks ben. Its become an addiction now to me. :lol:
|
|
Just finished up my 2nd attempt. A oversized monster rotor with a 10mm shaft.
http://i301.photobucket.com/albums/n...RCU/rotor1.jpg http://i301.photobucket.com/albums/n...RCU/rotor2.jpg http://i301.photobucket.com/albums/n...RCU/rotor3.jpg |
Man...if I had access to a program like what you have...wahoo! The possibilities would be endless.
|
no they wouldnt, once someone offers there cnc machine to use-then it would be endless :lol:
|
Quote:
|
What does a cnc machine cost anyway...I hate to ask
|
no idea.... more then i cann afford-im 16 :D
|
More than most people can I afford probably..
|
update, revised front CD mount-now with more Beef
http://i152.photobucket.com/albums/s...dammitwork.jpg |
Looking good...
Drop the brake holes and it should be ok... Still think you need more screw depth for the diff plate and bottom screws... How is the rear mount coming |
