@big house
i bought some FG 18mm square wheel adapters which are 9,5mm wide (part nummer FG6107 i think). They fit perfectly onto the 1:8 truggy axles as they have a 8mm bore and can be tightened onto the axles with 2 6mm grub screws (i never lost one adapter while driving). You can find square wheel adapters with more width (i chose the narrowest i could find). You only have to make sure they feature a 18mm square and have an 8mm bore (i think 8mm axles are common to most 1:8 truggys or buggys).

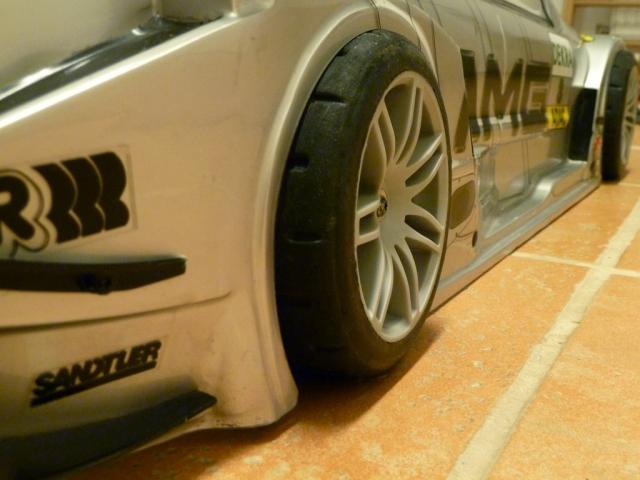

I'm using a screw and a washer to keep the wheel onto the wheel adapter as the truggy axle comes with a thread. I realy thought i will loose my wheels while driving but this never happened.

Attached Thumbnails
Click image for larger version

Name:	fg_mitnehmer_9mm.jpg
Views:	2574
Size:	30.4 KB
ID:	10581   Click image for larger version

Name:	grp_tires.jpg
Views:	1794
Size:	36.4 KB
ID:	10582


Brushless 1:5 custom 4wd Baja based on 1:8 truggy chassie
Jazz 55-10-32, Neu 1515/2Y (1100kv), 9s2p A123 (27v), up to 3.1KW
Latest video with eagletree Data inserts: Run on asphalt
