Inside pics of a Plettenberg Bigmaxximum

Hi RCM Members :)

I've got my Plettenberg Bigmaxximum now for about 1-2 years, but never opened it up. Today I decided to open it up, and take some pictures of it to put them on the web as there aren't any pictures of the inside of this motor. (Except the ones from Serum, but those aren't very high-quality)
The first thing I noticed after I opened it, was that the rotor wasn't so powerfull as I thought. (E.g. my Hacker C50-Maxx and Velineon rotor are WAY stronger than the one from the Bigmaxximum) If the rotor sits between the windings I can't turn it without using some pliers lol.
Anyway, I wanted to share these pics for you guys who are interested in it.

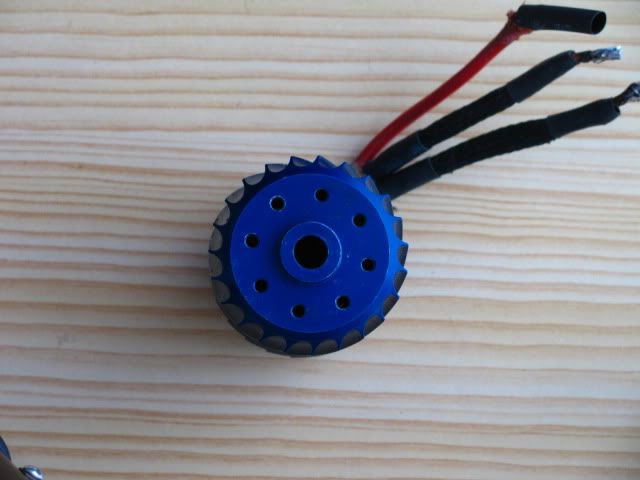

Pic from the front housing without the rotor

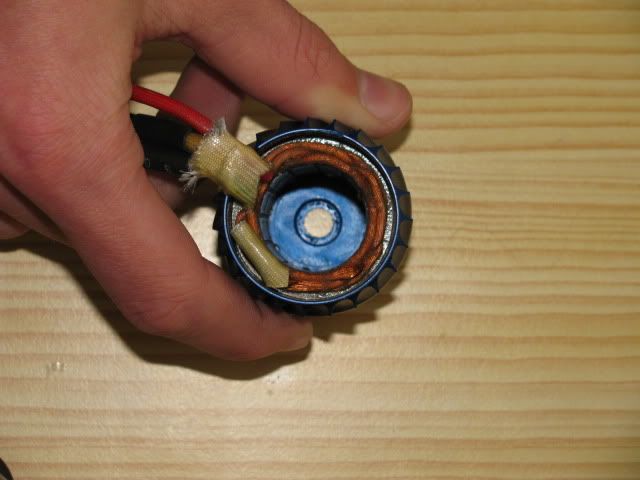

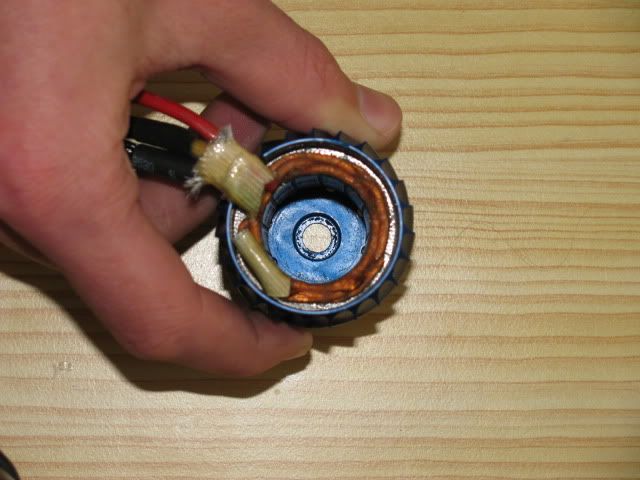

Windings


Windings

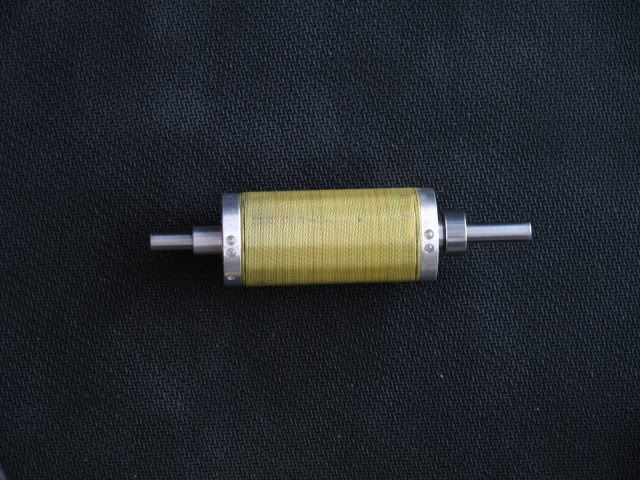

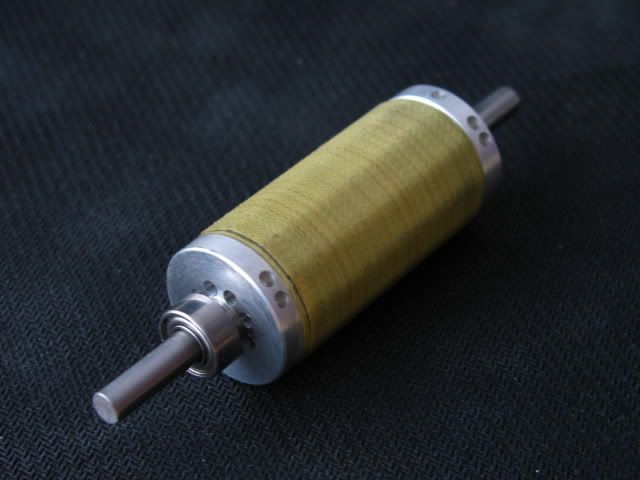

Rotor

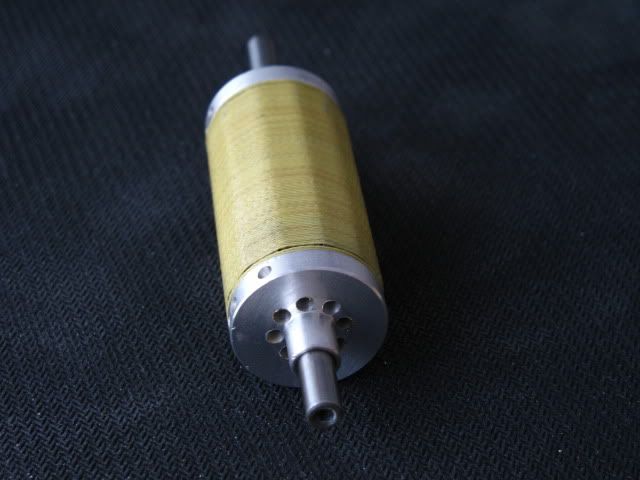

Rotor


Rotor

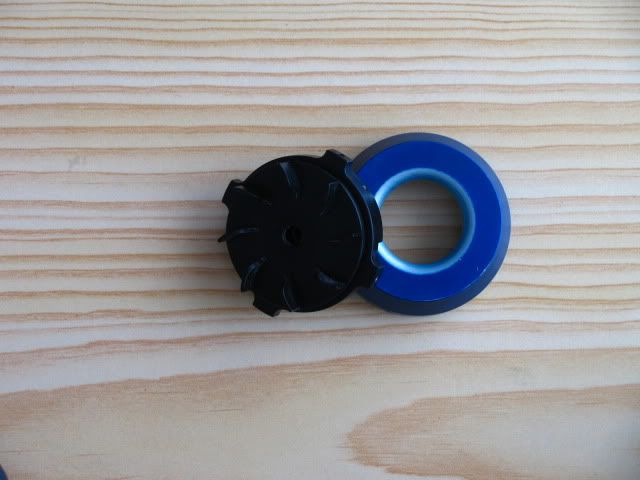

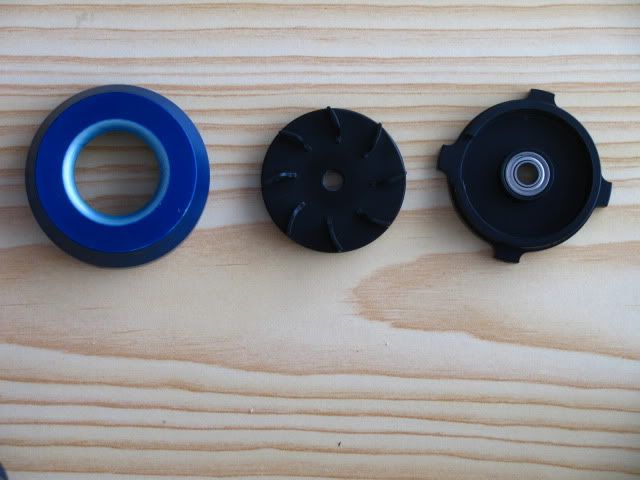

(Aluminium) Fan + Backside housing


(Aluminium) Fan + Backside housing

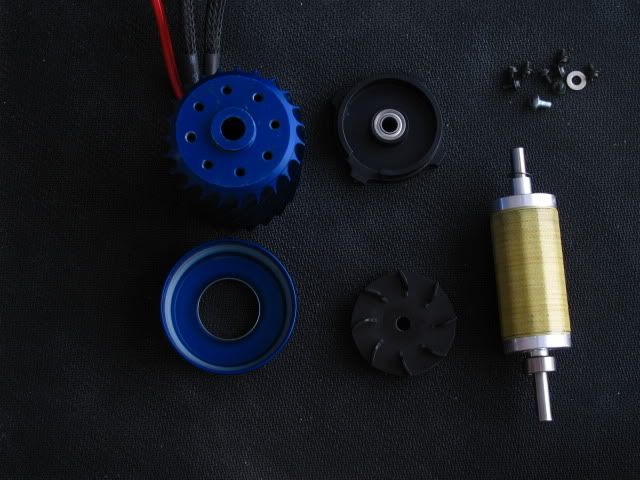

All parts together


Hope I helped the guys who always wanted to see a Bigmaxx from the inside

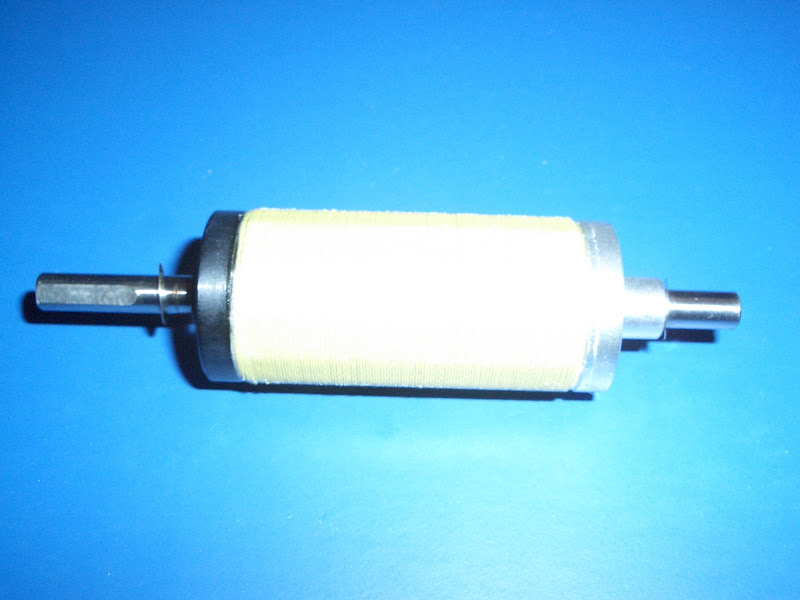

Oh, and 1 question: Serum has got another rotor than me, they almost look the same, but the one from Serum has got a part of the rotor in black. (Pic: http://lh5.ggpht.com/_us-0LYnrz70/Rf...0/CIMG1538.JPG) Does someone know what this means? Is my rotor maybe a new version?


- Patrick

[plettenbergs]

nice info...send it to me,i need to take a closer look!!

Originally Posted by plettenbergs

nice info...send it to me,i need to take a closer look!!

Hey! You're the guy with those beautiful E-Maxxes, one with double Schulze 19.87KW and double Plettenberg Bigmaxximum. (Yes, I still remembered that lol) They are so nice :)

You already got like.. 4 Bigmaxxes?


Did you ever open one of your Bigmaxxes, and do you know if you got a rotor with a black part or an aluminium part? Or do you know if my rotor is a newer version or older version?

Thanks,

Patrick
