CAD Drawing

I have drawn up a chassis that I would like to build but I talked to a local machine shop that can cut it with a CNC but after 4hrs messing around in AutoCAD I failed to get anything done. I know some of you fellow RCers are adept at CAD design and was wondering if anyone could draw it in CAD for me?
It's a chassis for my MLST that will lengthen it and turn it into more of a mini muggy. I plan on making it out of 3mm 7075 Al.
Thanks, Jordan

[brushlessboy16]

PM me.

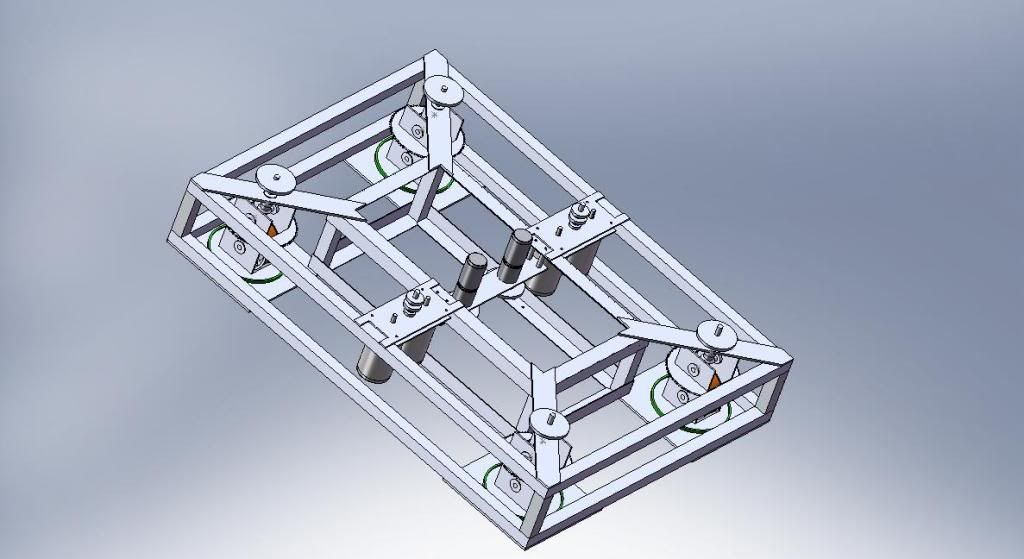

some of my work

[J57ltr]

He's got me I only do 2D. I use ACAD 2000

Jeff

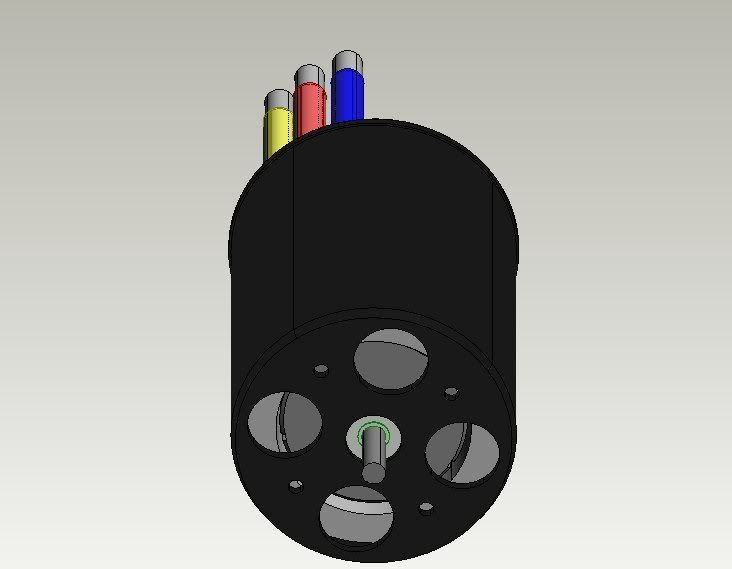

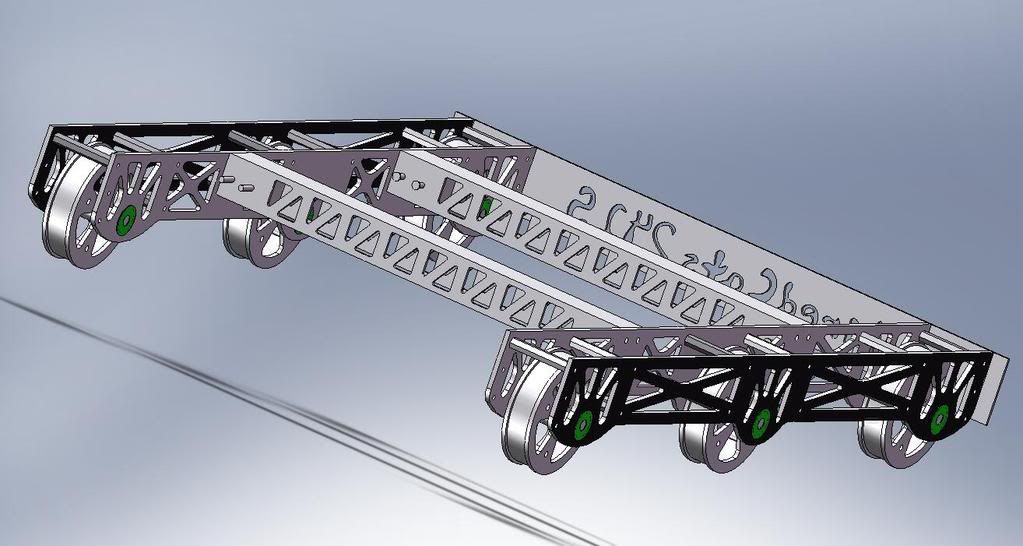

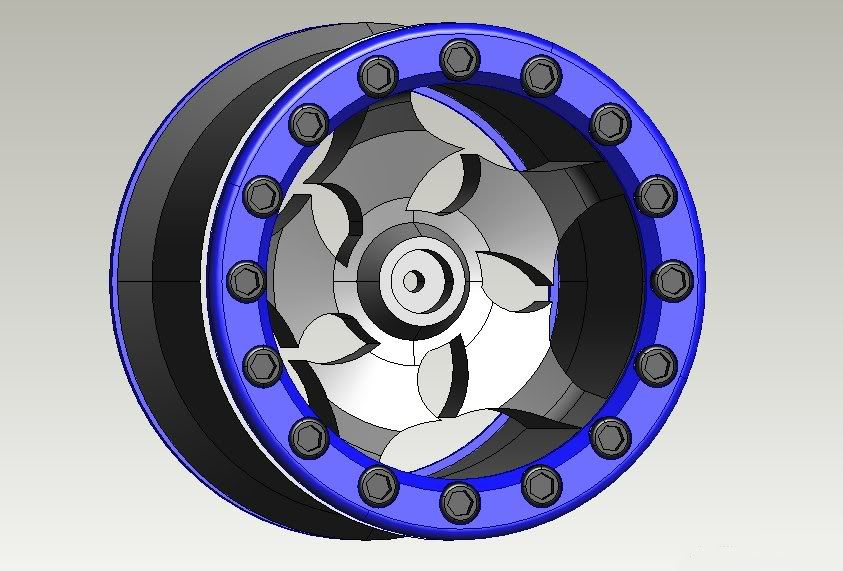

some of my work. done in solid works 2009. PM if i can help.

[J57ltr]

I'm almost done with the bottom plate but I need the hole sizes, the dim from the length of the rear tab. and can't really read the dims on the rear tab. and what Rad do you want on them?

Jeff

[brushlessboy16]

Sorry jeff. beat you to it



andrew thats a first robot, id know those motors anywhere

[J57ltr]

Ya it's been a while.

Jeff

[Snipin_Willy]

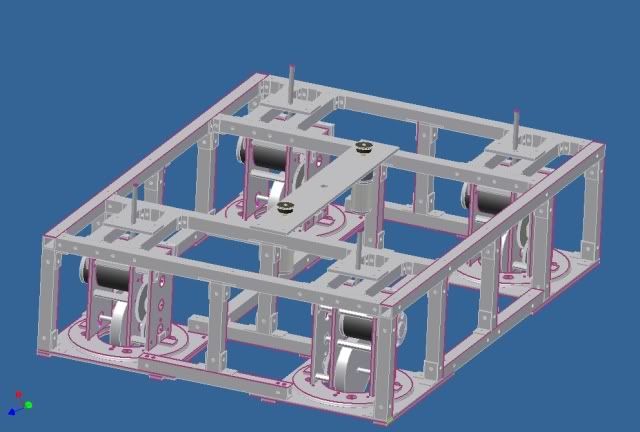

I used to have some serious skillz with Inventor and SolidWorks when I had access to the programs. Did a paintball gun for fun, valves, springs...Really not that much to it once you know how to edit your work planes and sketch stuff. Lately I've been using (more like trying to learn) Unigraphics NX4 and it's just a PITA.

brushlessboy16 and J57ltr those both look great,

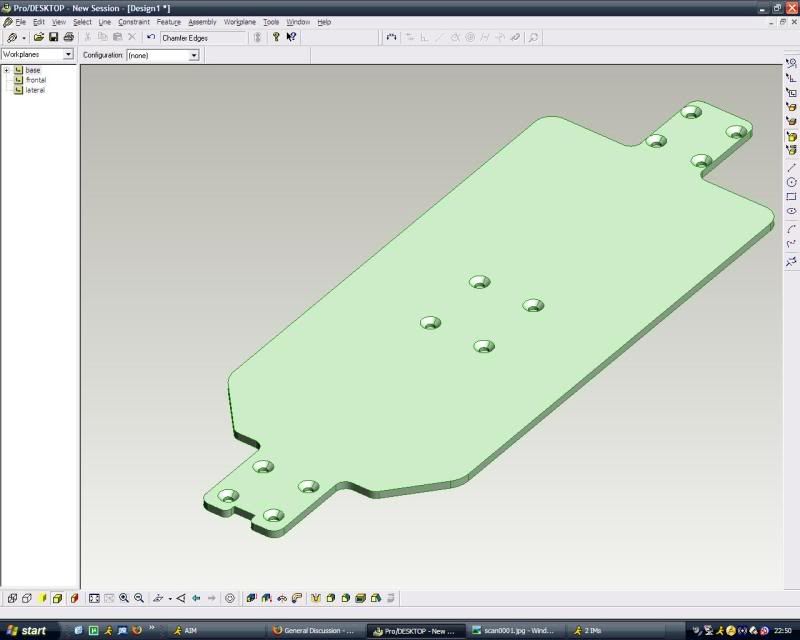

this image might have some missing measurements, if there are any more lmk, thanks for the work so far

I'm currently trying to clean up the drawing of the upper plate so it will be easier to read
