My MBX5T Build Thread

[tedo]

Originally Posted by BL_RV0

Hey, you can flip the mount around and mount the motor on the front left portion of the chassis.

Yes, he can flip it around, that's how I did mine. However he will have to flip the CF plate over that holds the front chassis brace, because the motor will hit the brace and you won't get a good mesh. It's an easy fix, just requires a new mounting hole on the chassis.


Oh, with the motor up front, a long shank pinion is also needed... I found this out after my build was practically done.

[Aceldama]

I caved and put the RCM mount in the designed location, and ditched the original carbon fiber servo plate.

I created another ESC plate that uses the original motor mount chassis holes and now I just need to create a brake servo mount.

I tried making my own motor mount out of 1/8 aluminum stock but gave up. It seems so strong at first but it ended up being pretty flimsy once I had it mounted up.

I'll update with pics tomorrow. It's about 4AM here and I'm dead.

OH, and I also drilled out the RCM brake spacer so that two of the holes would accept 4mm counter sunk screws. I needed to do this so that I could use the RCM mount with my Tekin motor that has the funky 3mm mounting hole spacing.

[tedo]

My RCM Mugen motor mount fit perfectly with my Tekin. I wonder why yours is weird. Now if USPS would just deliver my long shank pinion....

Good luck, nice build so far.

[Aceldama]

Well, it's finally done. (Aside from the new body I'm working on)

This morning I made a few mods so I could mount the original servo plate on the opposite side in order to maintain the mechanical brakes.

Here's the finished product:



I've given it a little romp around the neighborhood and I love it. The low speed control on this Tekin ESC is impressive. I can only compare it to my 1/10 and 1/18 non-sensored stuff but it's way ahead of those in terms of 'feel'.

As far as the motor spacing goes it seems to be a manufacturing defect on the 3mm spacing. Tekin haven't answered my e-mail or posted in the thread I've created about the issue. I only know of one other user who has seen this issue, Jhautz. It's not a problem for me anymore since I just bored out the brake spacer for 4mm screws.

[BL_RV0]

Looks very nice!

[magman]

Originally Posted by Aceldama

Well, it's finally done. (Aside from the new body I'm working on)

This morning I made a few mods so I could mount the original servo plate on the opposite side in order to maintain the mechanical brakes.

Here's the finished product:



I've given it a little romp around the neighborhood and I love it. The low speed control on this Tekin ESC is impressive. I can only compare it to my 1/10 and 1/18 non-sensored stuff but it's way ahead of those in terms of 'feel'.

As far as the motor spacing goes it seems to be a manufacturing defect on the 3mm spacing. Tekin haven't answered my e-mail or posted in the thread I've created about the issue. I only know of one other user who has seen this issue, Jhautz. It's not a problem for me anymore since I just bored out the brake spacer for 4mm screws.

Very nice. On my e-maxx single motor mount, the screws don't line up as well. I just opened up the holes a bit

[brushlessboy16]

Very nice setup, any chance Of Video?

I would be afraid to put my lipos out in the open like that :)

[Aceldama]

Originally Posted by brushlessboy16

Very nice setup, any chance Of Video?

I would be afraid to put my lipos out in the open like that :)

I'll see if I can get some video. I just have my point and shoot camera so it will most likely be awful.

As far as the battery protection goes, that is a concern but I think it's going to be all right:
-The Neu Energy back are built like Rhino packs and have that protective skin below the shrink level.
-The strap covers most of the battery.
-The body covers the battery.

I'll keep an eye on them and if I see any marks from rocks and sand on them I'll probably add a thin sheet of plastic between the strap and the battery.

Now I need to start painting a new body.

Sweet. very clean, and well put together.

[nitrostarter]

Why not just use motor brakes for bashing? No real need for brake bias...

Looks good tho! Clean conversion! I would lay those packs down tho, on not expose them to the outside like that. Maybe have a tray that you can slide the batteries in from the top...

[Aceldama]

I have the misguided belief that using the mechanical brakes will prolong the life of my electronics.

I'll have to take a picture of the batteries when they're inside the trays. They're pretty far from exposed when the straps and body are on. The lip from the rock guard covers a bit, the strap and body covers the rest.

[Unsullied_Spy]

Looks very good. I like what you did with the wires for the ESC and motor, it looks very clean with the shrinkwrap slid down over the solder posts.

[Aceldama]

Originally Posted by Unsullied_Spy

Looks very good. I like what you did with the wires for the ESC and motor, it looks very clean with the shrinkwrap slid down over the solder posts.

Thanks. I was debating whether or not to put bullets on the wires but glad I did with all the shifting around I've done. I used the Metcal MX500 we have at work to do the soldering, it was a breeze with that system.

[Aceldama]

I finished the body this morning so I took some pictures:

First is the battery in the tray:

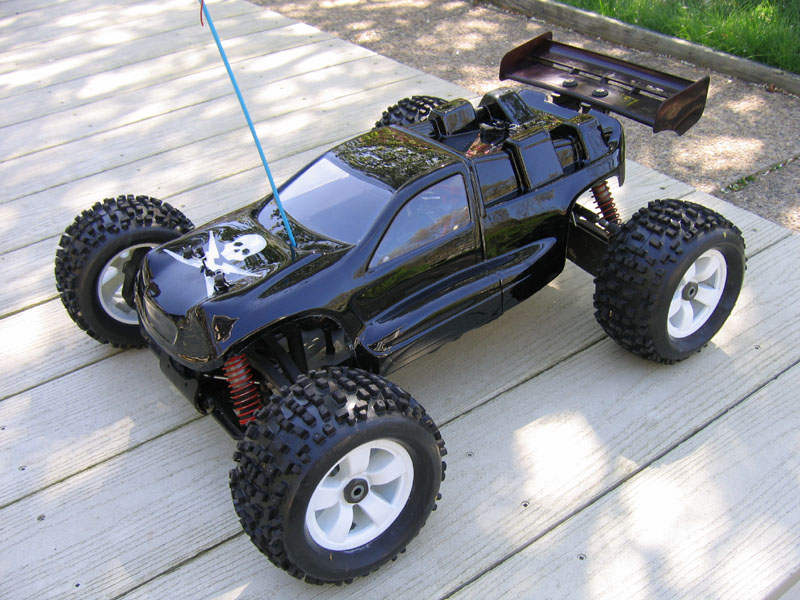

Here's the body... I like to keep it simple:

[BL_RV0]

She's a beauty man.
