I have this posted on RCZ but I thought I would share over here too.

I've been looking to get my girlfriend a truck of her own. She likes my Revo and I originally had a RC10GT lined up for her, but the GT was just too small. I found a good deal on a RTR E-Maxx and a Revo rolling chassis. I'm taking the E-Maxx tranny, Titans, EVX, and part of the chassis to build a nice base for the E-Revo. The rest of the E-Maxx will be used for a crawler project of mine, but that's another thread. Along the way it will get the treatment of anything pink I can find for a Revo, including a nice lid. On to the pics.

The donor-
http://img.photobucket.com/albums/v2...o/HPIM0904.jpg

The rolling chassis-
http://img.photobucket.com/albums/v2...o/HPIM0905.jpg

Stripped
http://img.photobucket.com/albums/v2...o/HPIM0906.jpg

Modified the engine mount and tranny mount area. Still needs more trimming

http://img.photobucket.com/albums/v2...o/HPIM0908.jpg

http://img.photobucket.com/albums/v2...o/HPIM0909.jpg

Onto some more progress. I have strep throat, so I've been home sick from work. Luckily my hands work :D Hopefully she'll go out with friends this weekend and I can get a lot of work done.

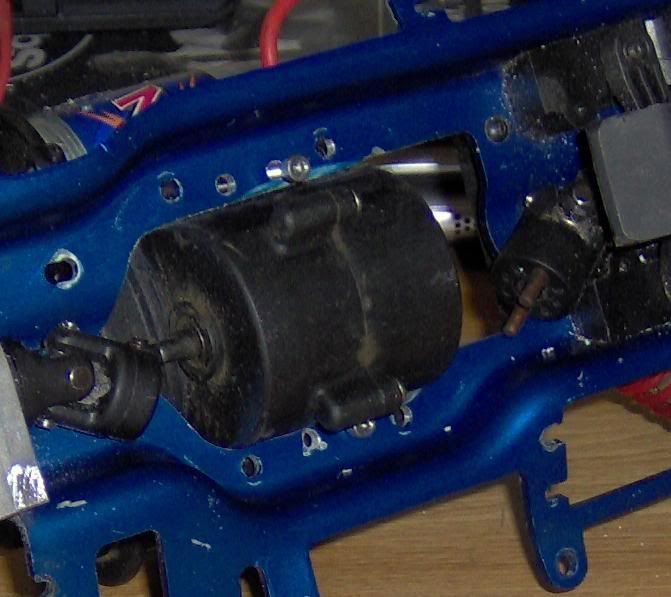

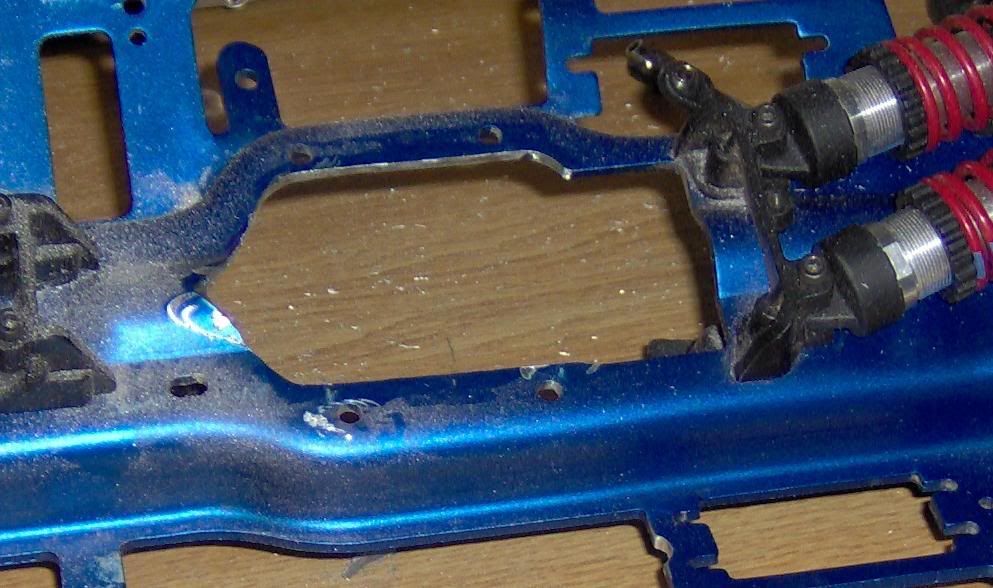

Alright, I started off by making more room for the transmission. This turned out to be a little harder than I thought. I had to shave a lot of material from the bottom of the chassis for the rear driveshaft to spin freely. I also am only using the center two holes on each side of the tranny. I think they will do the trick. When I go to brushless and LiPos, then it might be necessary to change some things but that's down the road. Notice in the second picture the clearance issues I was talking about.
http://img.photobucket.com/albums/v2...nnytunnel1.jpg

http://img.photobucket.com/albums/v2...nnytunnel2.jpg

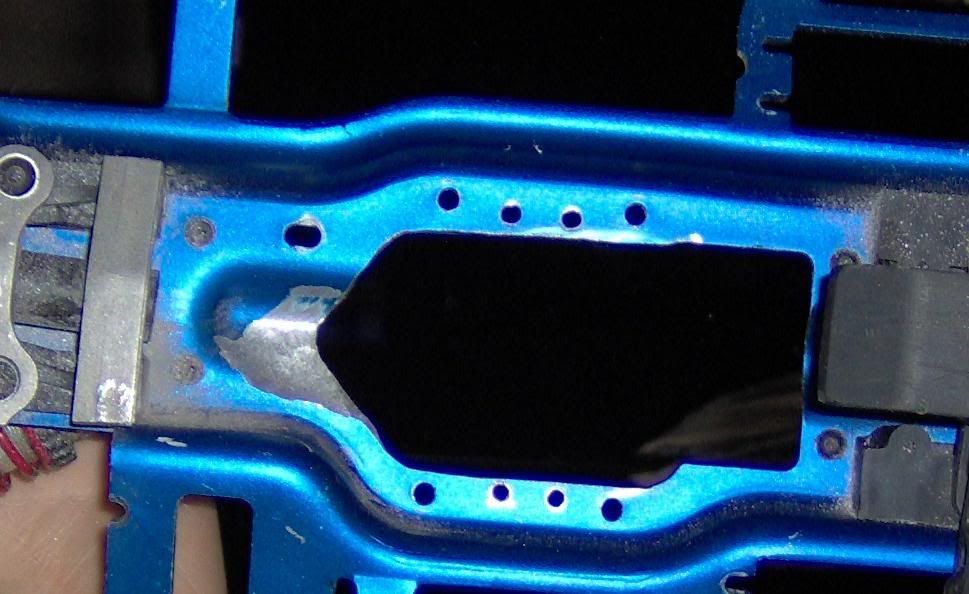

Here you can see how much material I had to take off. I could have just cut it all out but that would have made it look hacked and that's not my kind of work. I'll make it smoother on the final assembly.

http://img.photobucket.com/albums/v2...undershot1.jpg

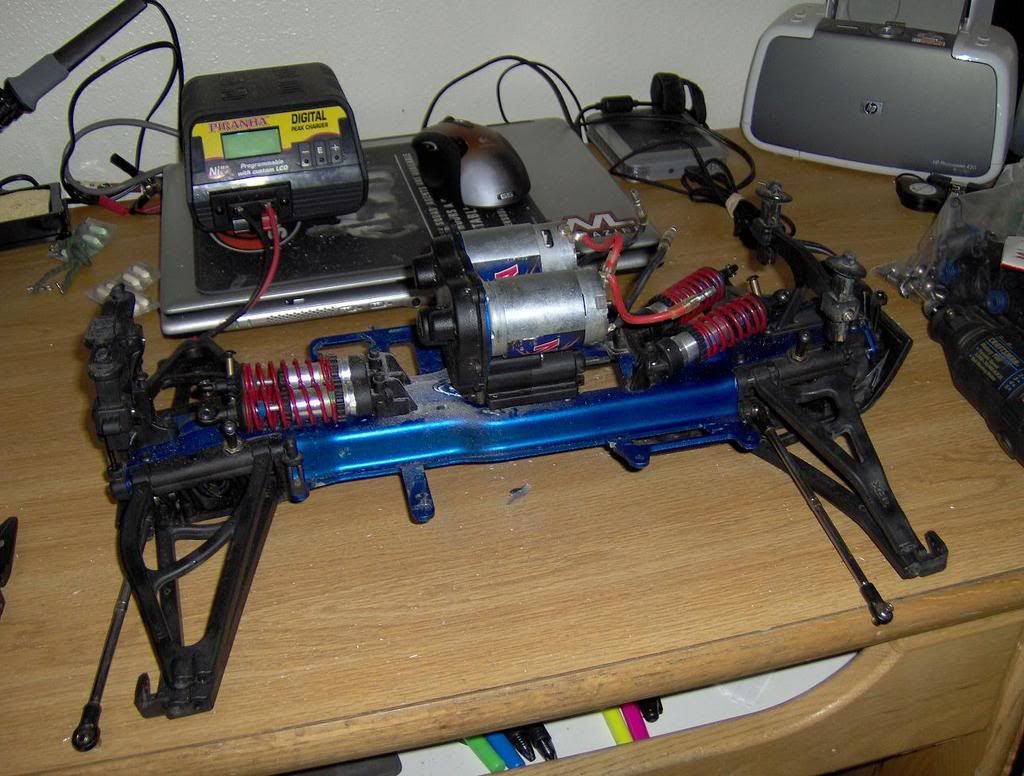

Here's the tranny mocked up
http://img.photobucket.com/albums/v2...nnymockup1.jpg

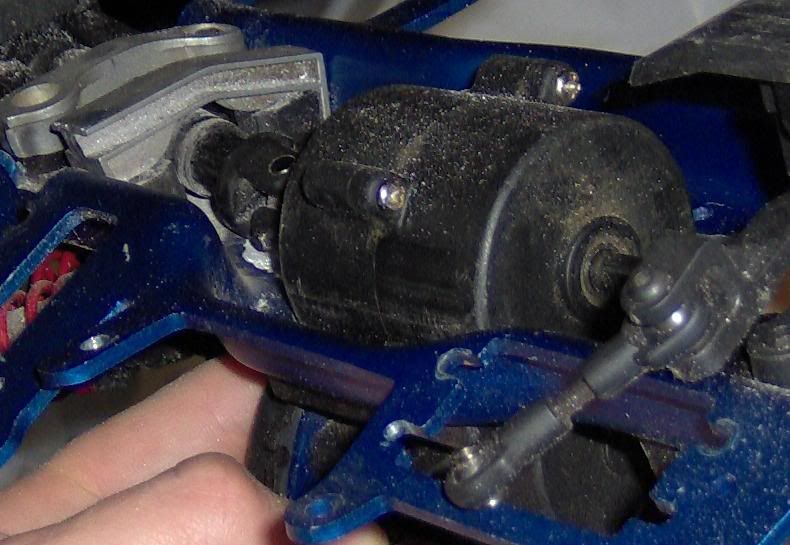

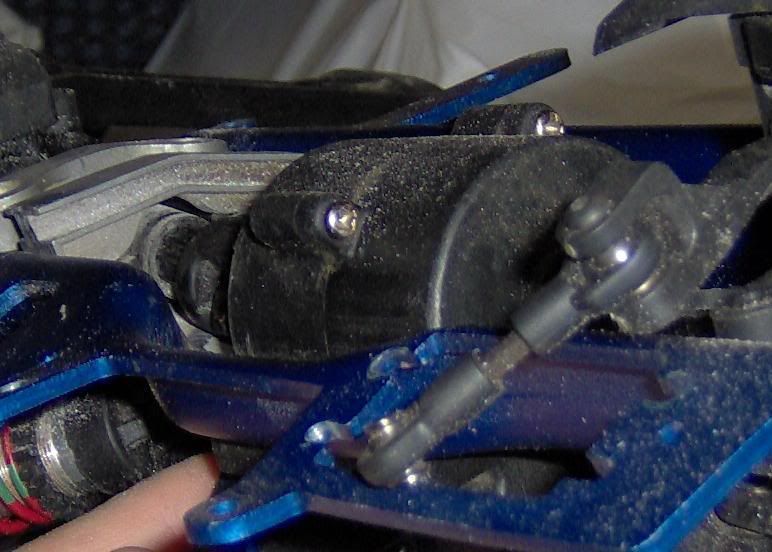

Take a look at these two pictures and you can see the clearance I was talking about. Pretty close but it will work.
http://img.photobucket.com/albums/v2...ranceshot1.jpg

http://img.photobucket.com/albums/v2...ranceshot2.jpg

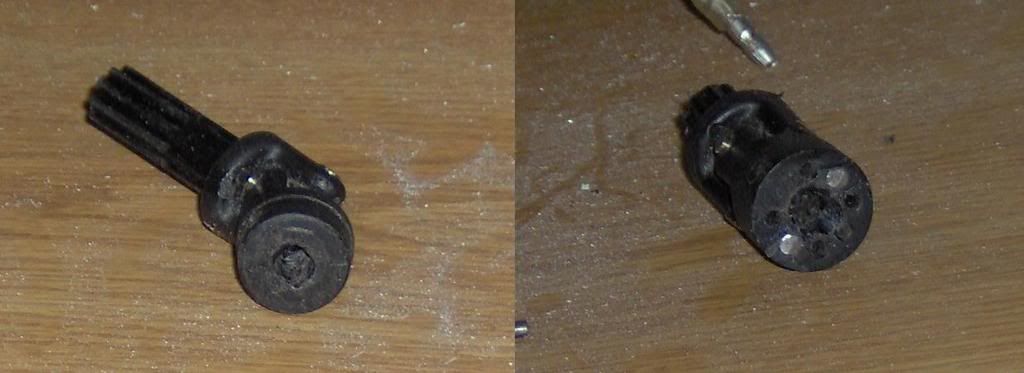

Next was the center shafts. On the E-Maxx tranny, the Revo shafts will not fit deep enough. You can trim the E-Maxx tranny shaft or you can take some material off the half shaft. I decided trimming plastic was easier and less expensive in a mistake. I also had to hack off the two small pins coming out of the front shaft. Usually these pins line up and secure the brake disk, but since that's gone they aren't needed. Here's a picture, they look mangled but they're actually not that bad and I can clean them up nice.

http://img.photobucket.com/albums/v2...ntershaft1.jpg

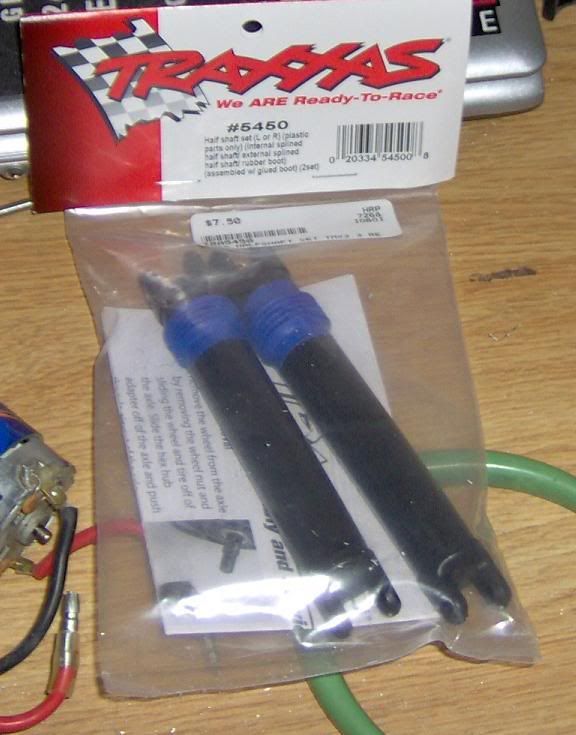

The rear was long enough but the front was way too short. I bought a set of half shafts from my LHS for $7.50. I will have to shorten them, but they will do the trick.

http://img.photobucket.com/albums/v2...alfshafts1.jpg

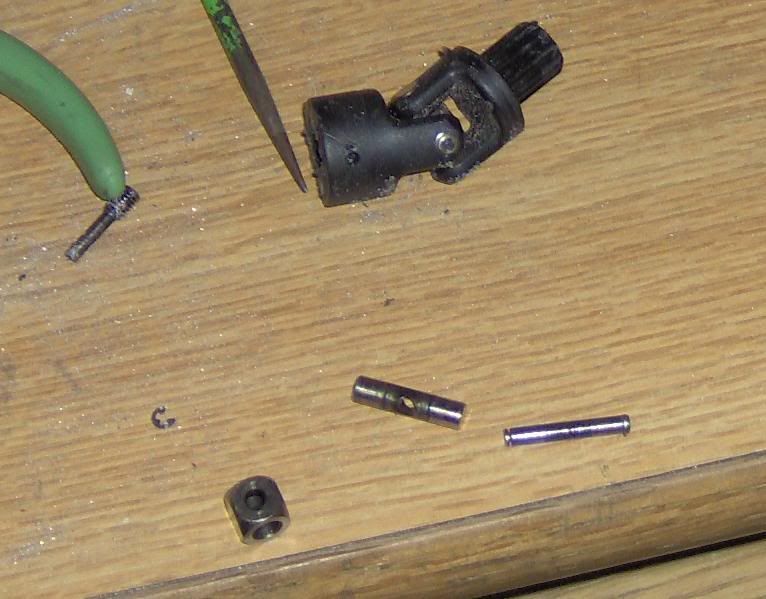

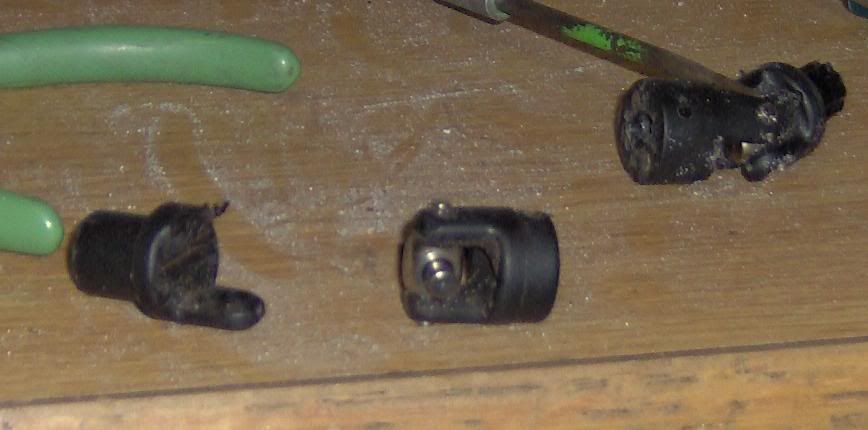

Now, don't do what I did. Take a second and look at the shafts. I didn't realize this until I hacked off the one side of the old shaft. The pin with the e-clips (note: don't lose that little suckers!) secures the whole assembly together. Taking off one clip allows you to take off the u joint without stretching, binding, or cursing. Put the old tranny side u joint and the diff side u joint on the new half shaft and assemble the pins.

http://img.photobucket.com/albums/v2...shaftdiss1.jpg
http://img.photobucket.com/albums/v2...shaftdiss2.jpg

This is where I stopped today. She came home right when I got done cleaning up so the next time I resume building I'll start with showing how I'm chopping the half shafts.

In your last post, third picture down. Those two cast aluminum braces - I think they were for the motor mount? I didnt keep those in my Revo, and hasnt seemed to matter so far.

Also, when you are done hacking the chassis, you should send it out and have it powdercoated pink. I think that would look nice for her.

looks like u done your homework on this build, but why did u get them long shafts when u could have use a rear one to fit perfect?

So when can we expect test run video.

Her birthday is on the 20th but we're celebrating on the 28th or sometime around there. So it should be done by then and I'll have a test run sometime before.

I used the long shafts because they're easy to cut down and are good spares for any shaft on her E-Revo or my Revo.

Those braces actually keep the rear end from flexing. The one with the screws matters most since it is actually keeping the two front halves of the bulkhead in place. You could leave them out, but I won't. In my opinion, it will only be a matter of time before you hear some clicks and moans coming from your rear end. I've had a 2.5R, a big block, and now a TZ-TX in my Revo and the rear end is still in good shape. I just took the rear diff apart, cleaned, lubed, and threw it all back together. Everything looked great and as long as I take care of it and keep the slipper properly adjusted it will be fine. Same thing for a brushless truck, keep that area braced and you should see a good life span out of the rear diff. If you start blowing ring gears, try a aluminum cup and shim it well.

More updates...

First, the pile of goodies. I forgot to get the rest of the paint at the hobby shop. She was with me and it was hard enough to distract her and buy all the stuff, haha. Anyway, here's the new stuff:

'07 ProLine Chevy Silverado, PL Velos (gonna mount the Sportraxx on there), Tamiya Pink Paint, and pink shock socks-
http://img.photobucket.com/albums/v2...o/HPIM0933.jpg
http://img.photobucket.com/albums/v2...shocksocks.jpg

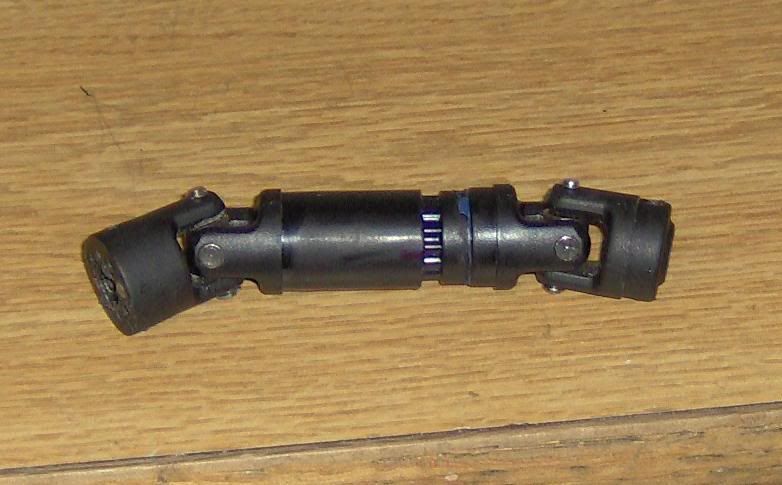

Got the front driveshaft finished-
http://img.photobucket.com/albums/v2...ishedshaft.jpg

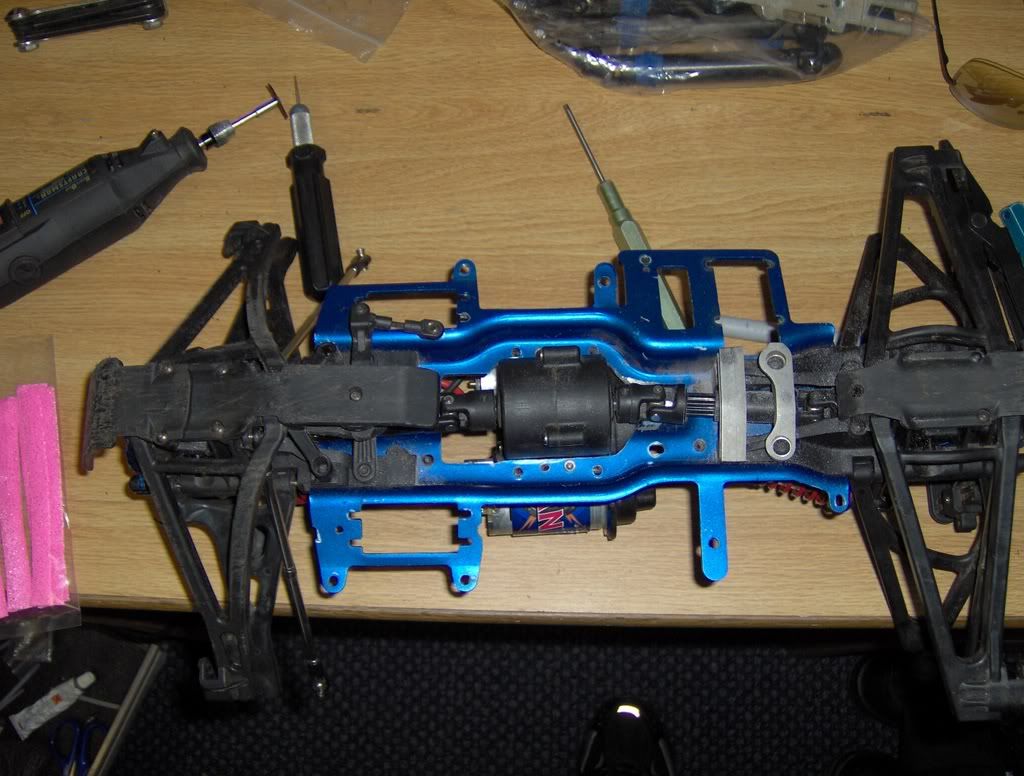

Here it is mounted-
http://img.photobucket.com/albums/v2...o/HPIM0940.jpg

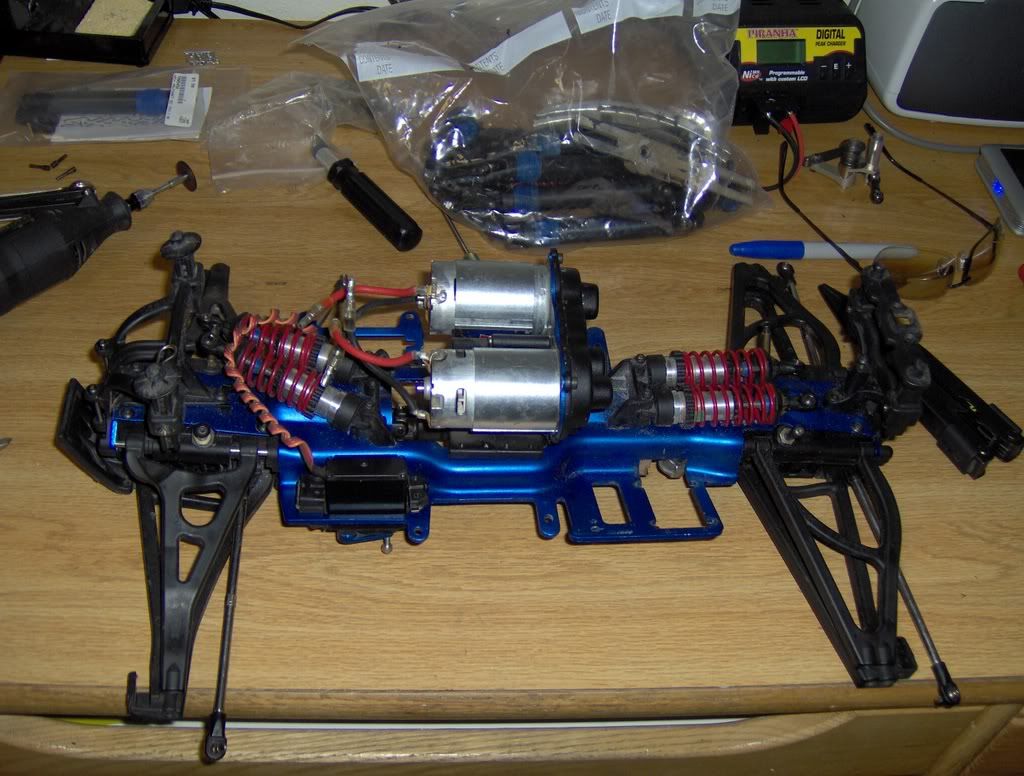

Servo mocked up in it's position, only using one in this build. Right now it's a z650m. Gonna upgrade to a 358 or a 357 later-
http://img.photobucket.com/albums/v2...o/HPIM0942.jpg

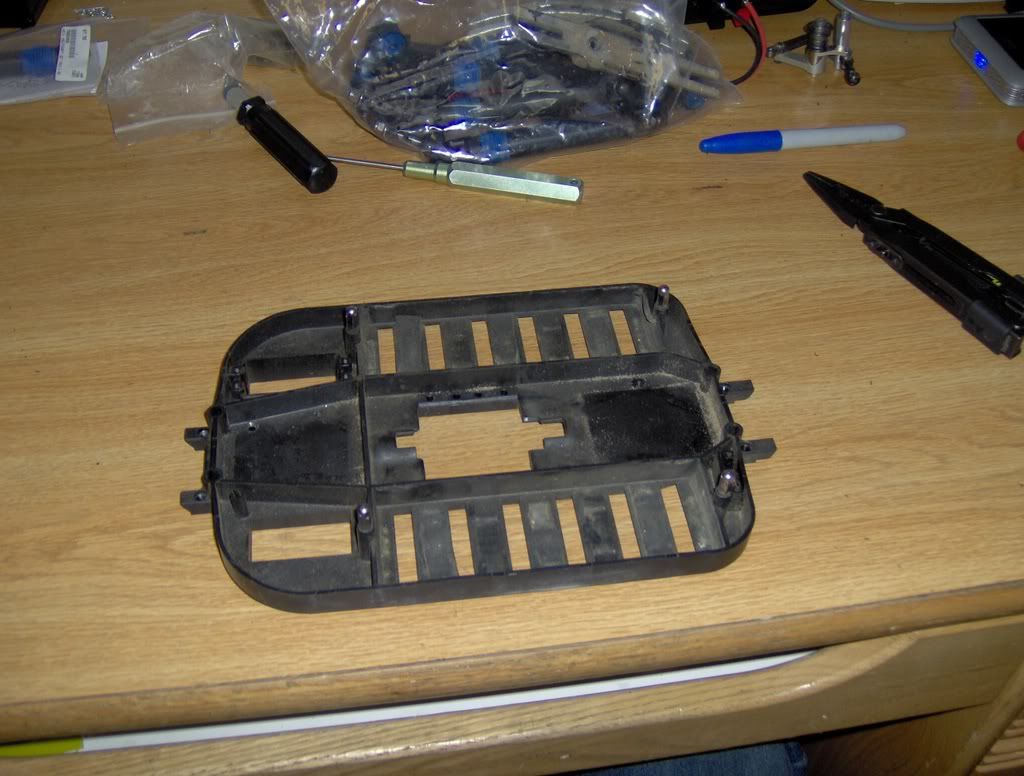

The poor E-Maxx chassis giving the ultimate sacrifice :(
http://img.photobucket.com/albums/v2...o/HPIM0944.jpg

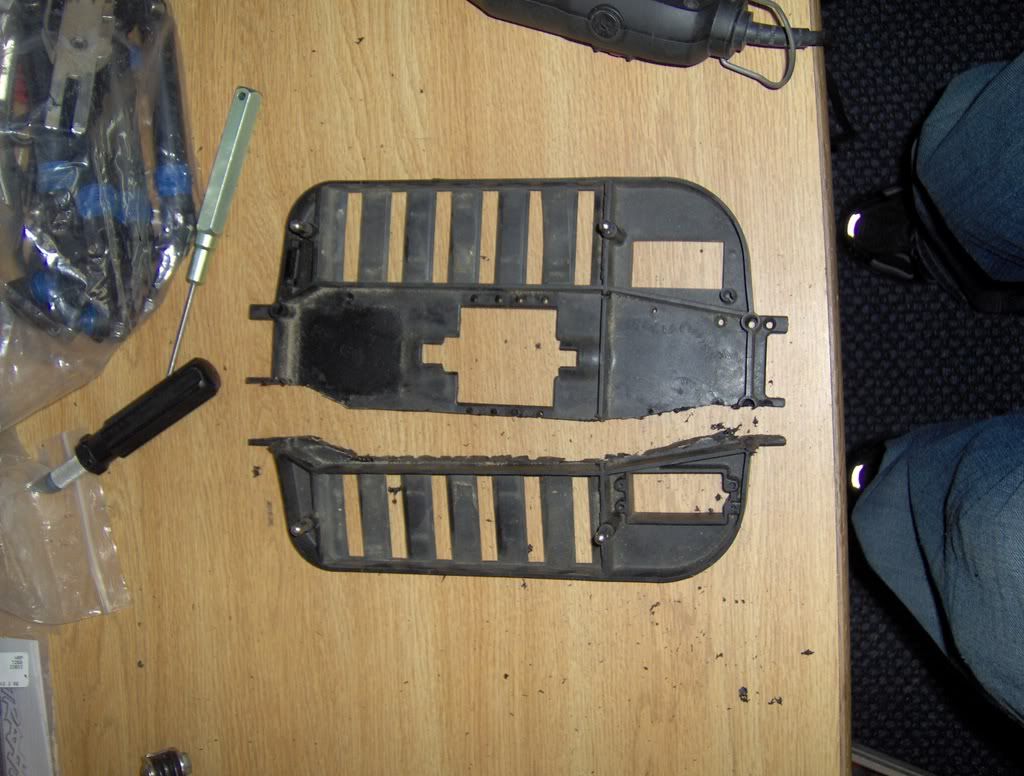

Start of the surgery-
http://img.photobucket.com/albums/v2...o/HPIM0945.jpg

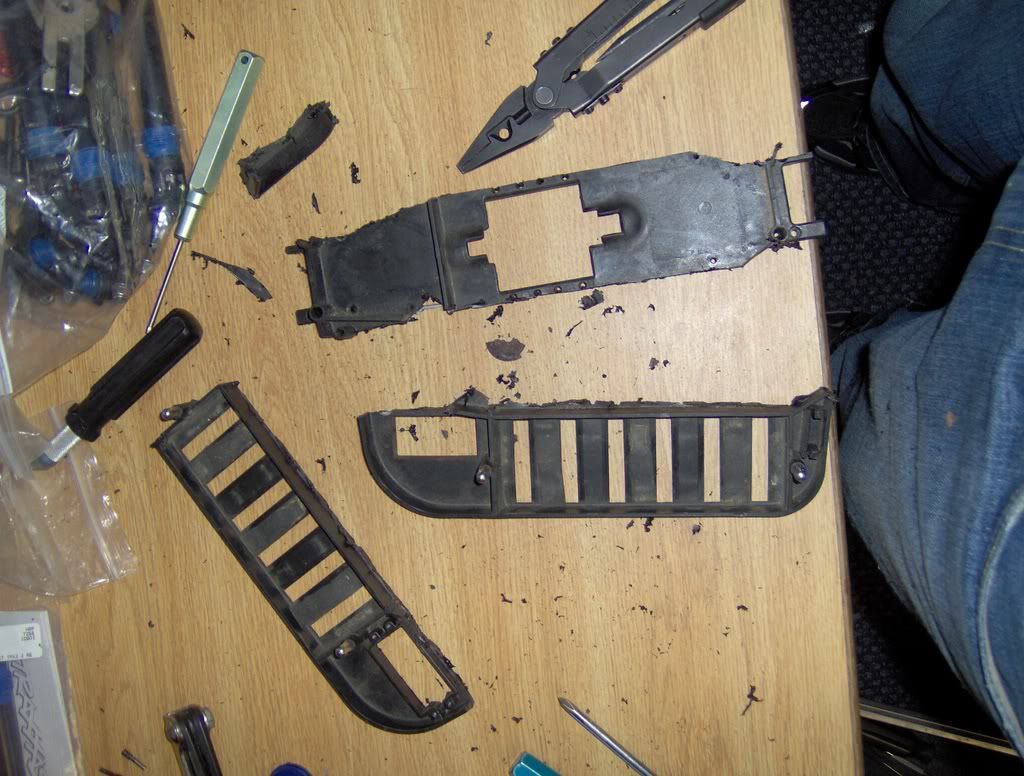

Other side-
http://img.photobucket.com/albums/v2...o/HPIM0946.jpg

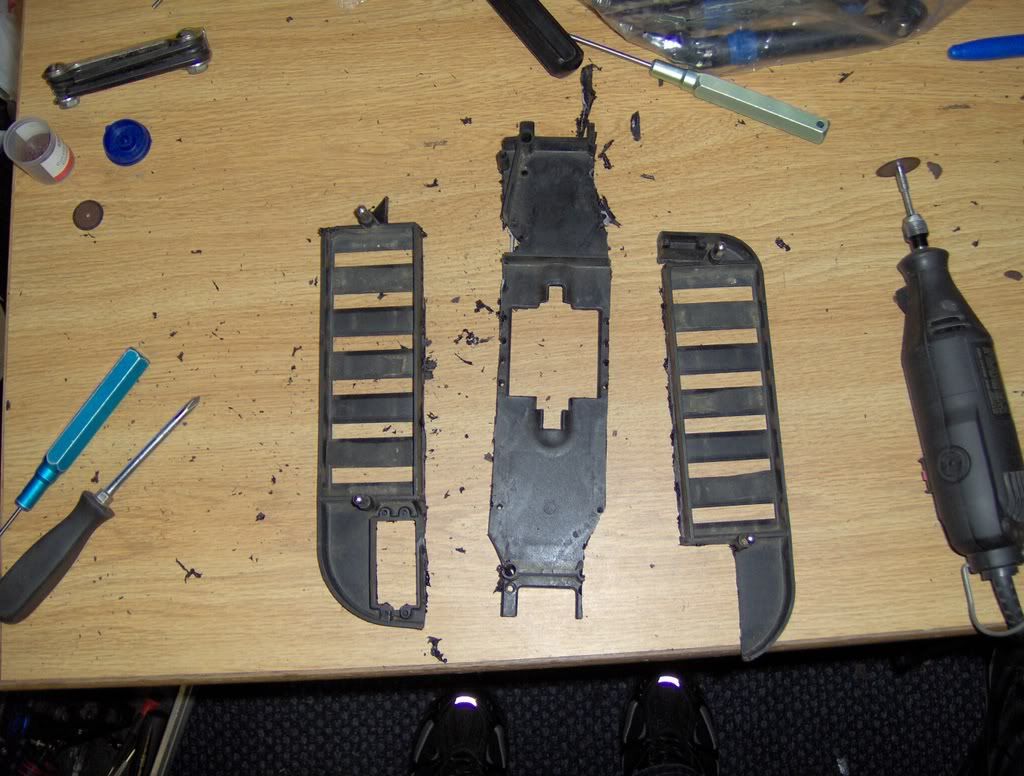

Final major trimming-
http://img.photobucket.com/albums/v2...o/HPIM0947.jpg

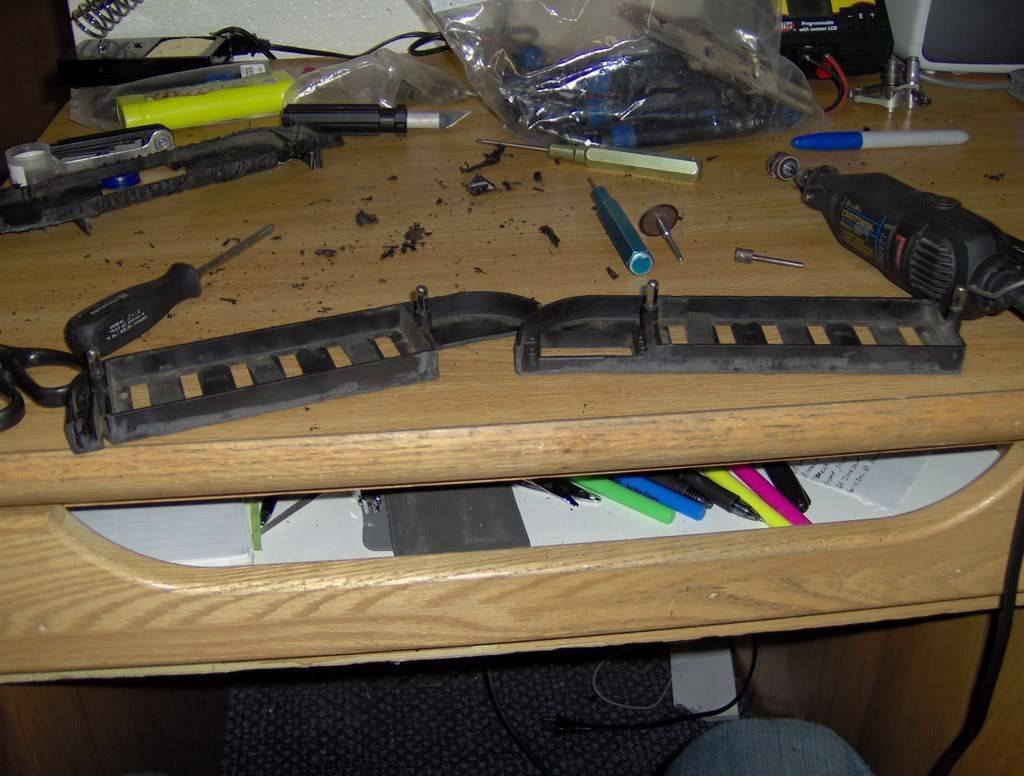

Finished up, cleaned, ready to go on-
http://img.photobucket.com/albums/v2...o/HPIM0948.jpg

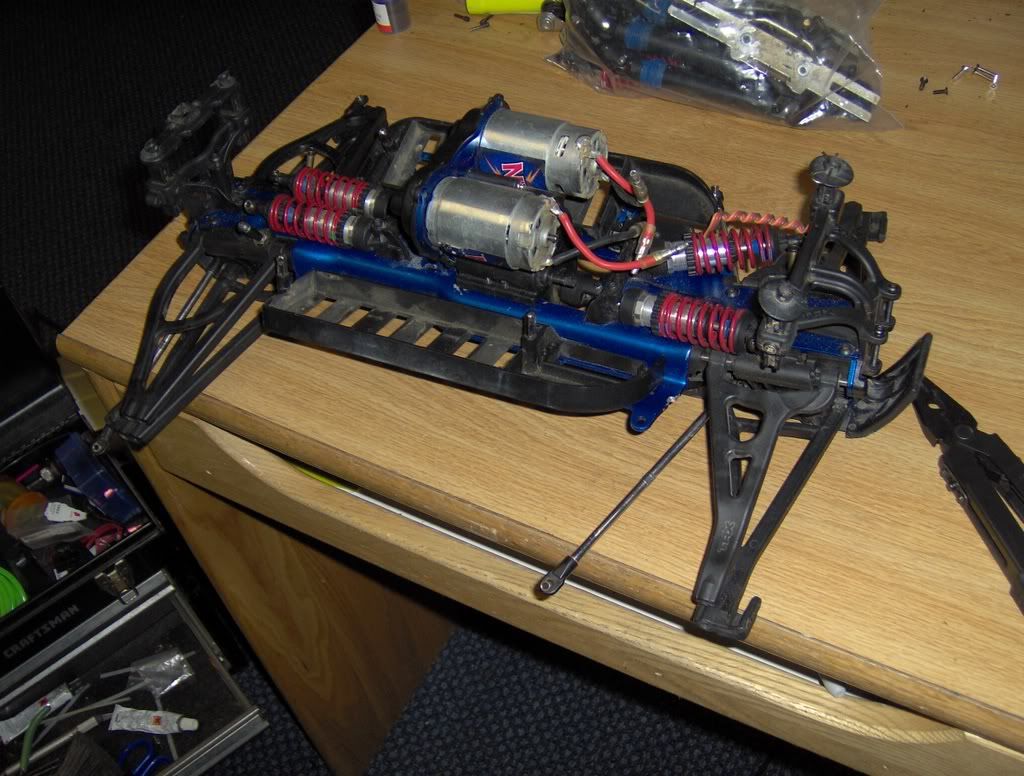

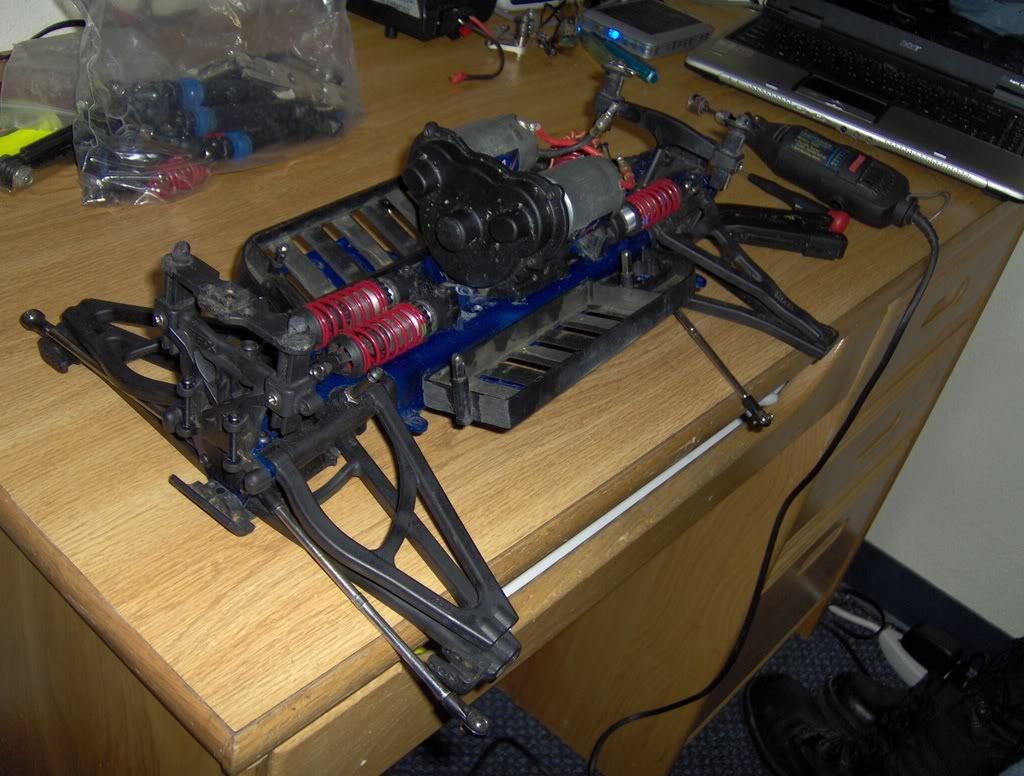

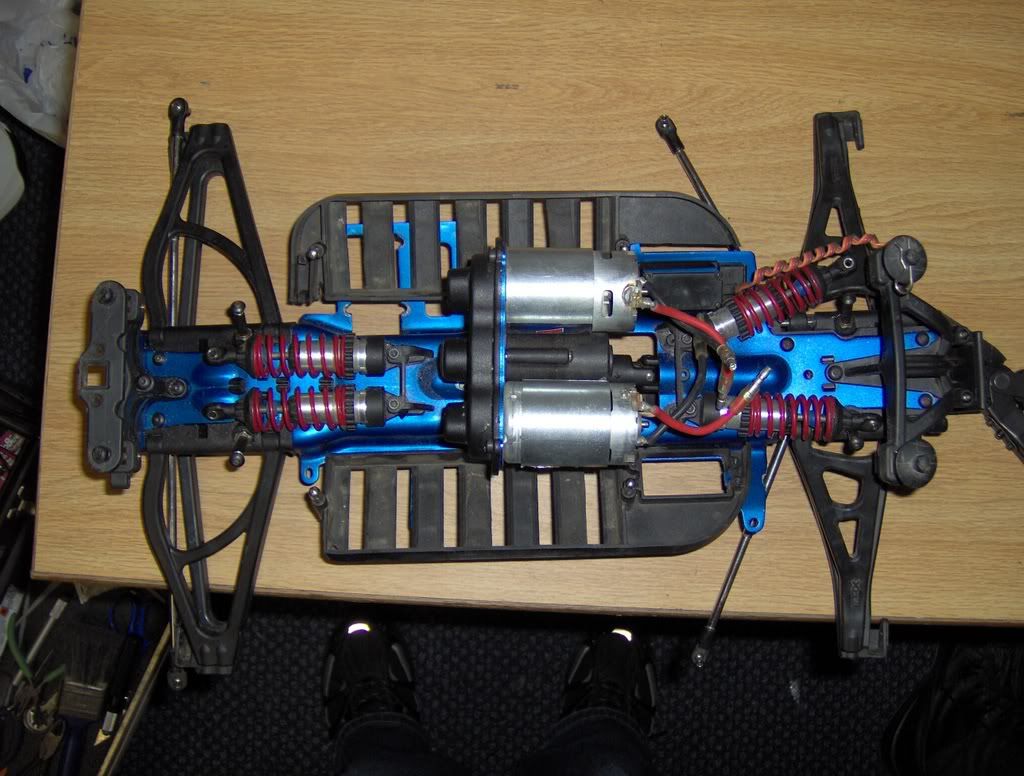

Mocked into place, note that the shift servo location is saved, as well as the switch location. I also bent up a couple of the tabs on the chassis to match the angle of the trays and the major points of the tray supports-
http://img.photobucket.com/albums/v2...o/HPIM0949.jpg
http://img.photobucket.com/albums/v2...o/HPIM0951.jpg
http://img.photobucket.com/albums/v2...o/HPIM0953.jpg

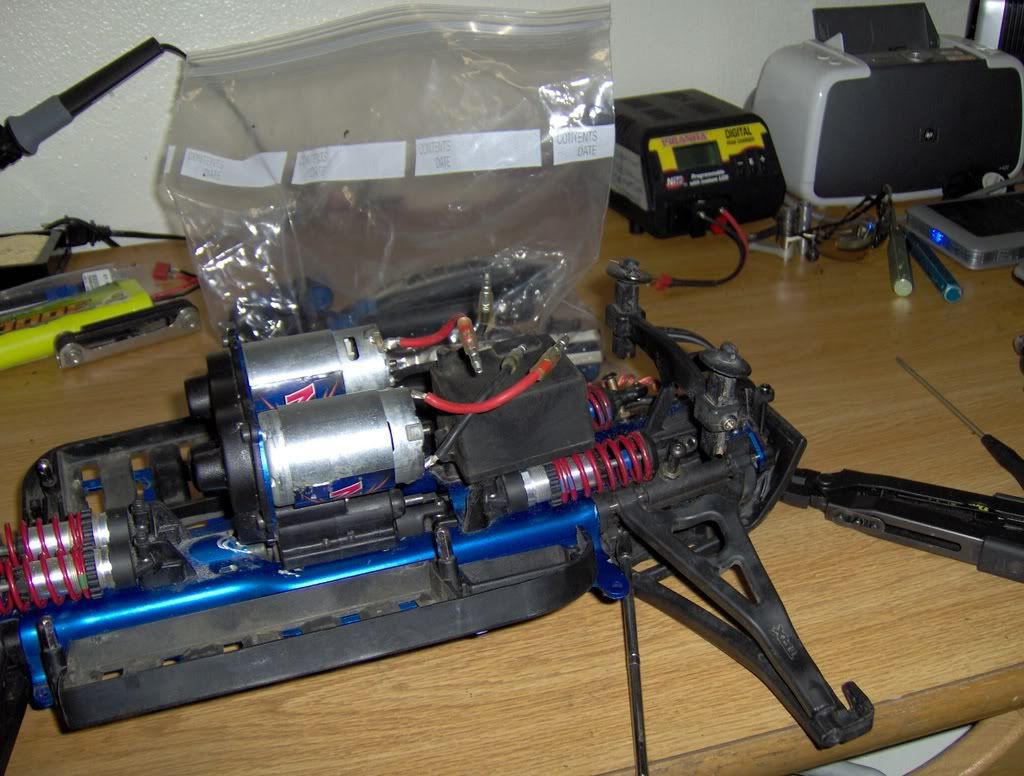

Radio box mocked into place-
http://img.photobucket.com/albums/v2...o/HPIM0954.jpg

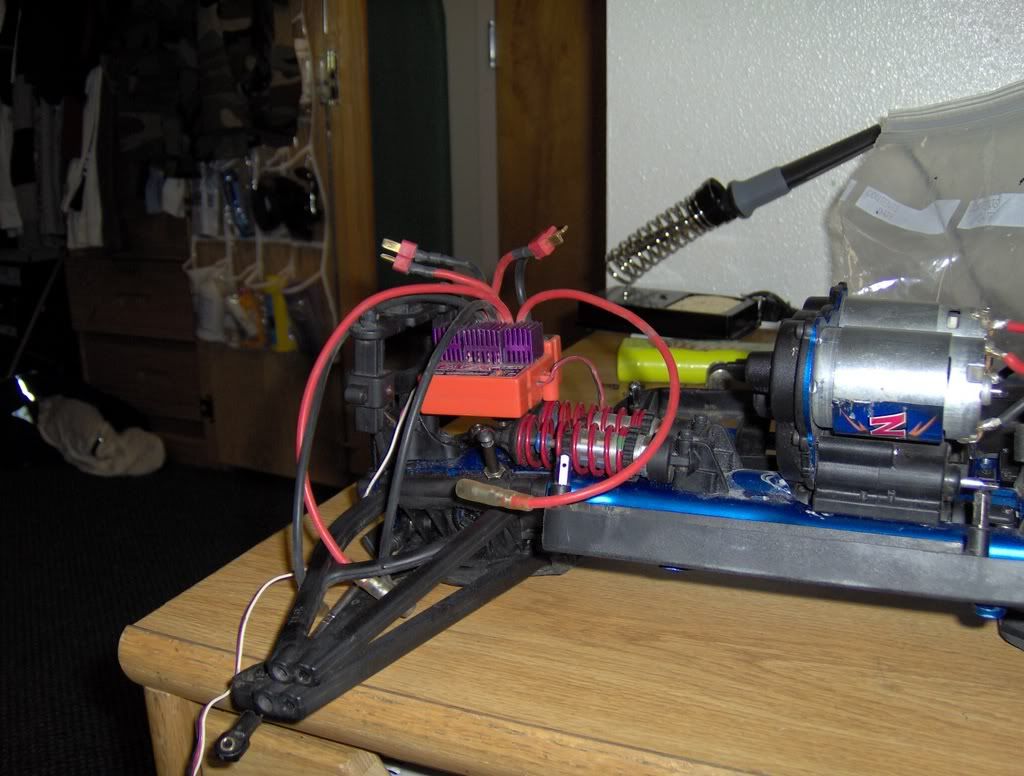

EVX mocked up, I'm pretty sure I'm gonna make a support/mounting plate for it. I don't want it all the way back by the body mounts but I also don't want it too far forward over the shocks-
