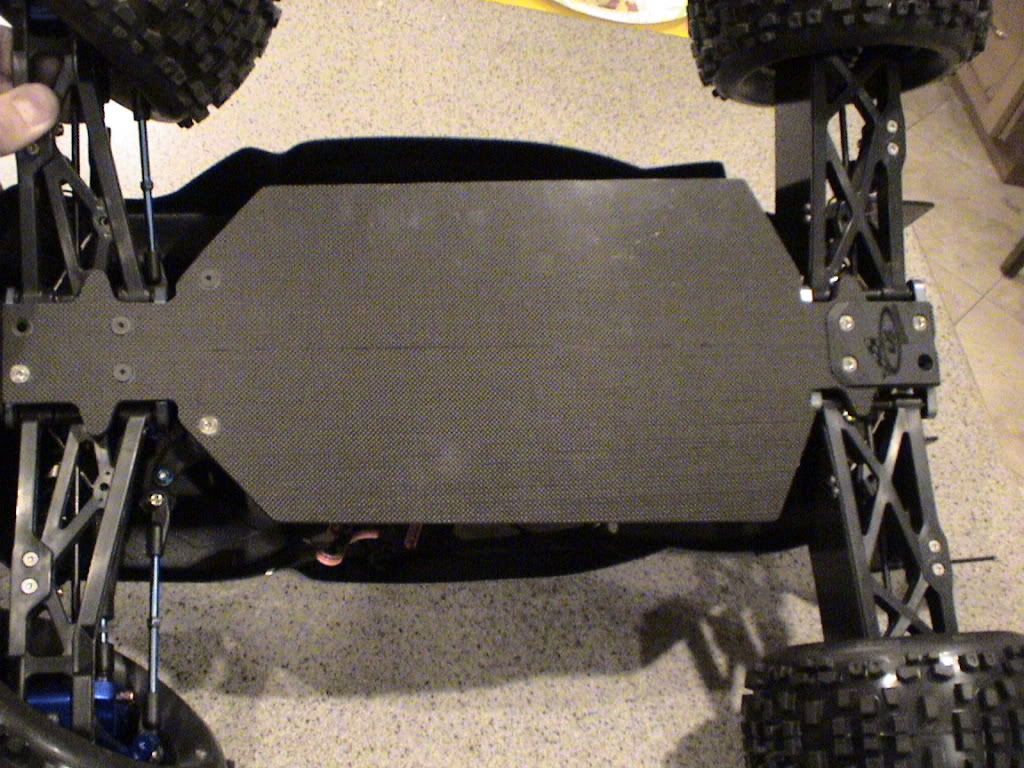

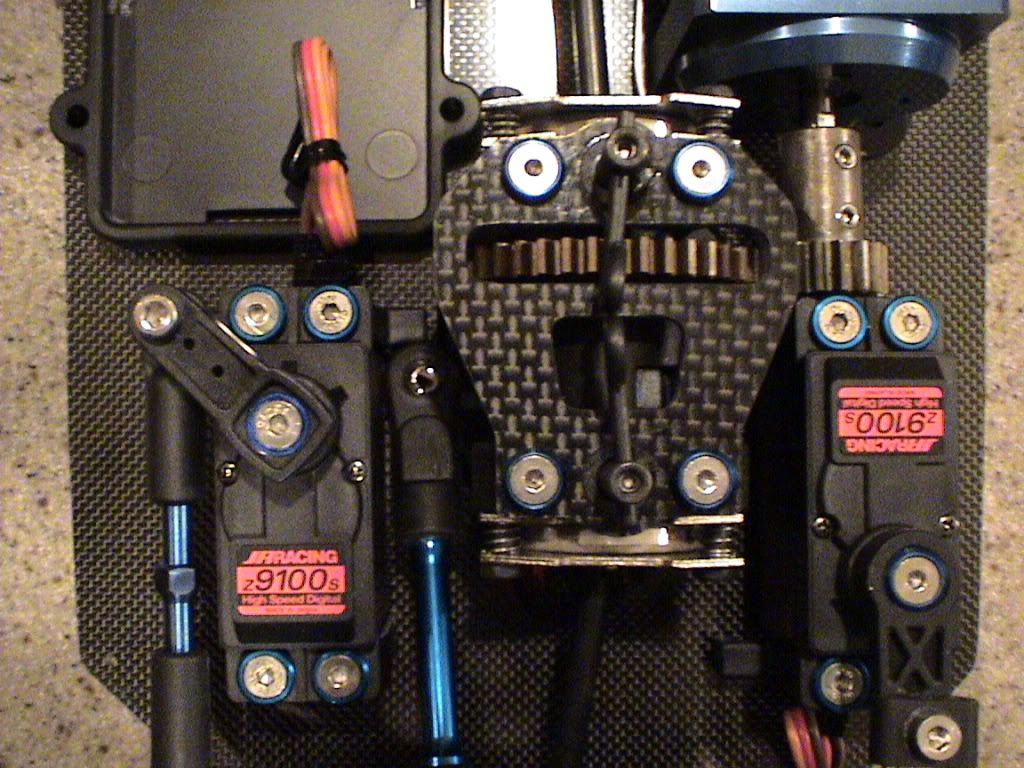

So i started on this custom RC8T a while ago and i am finally getting close to finishing her. Most the time has been spent waiting for the carbon fiber sheet to be made. I had a sheet of 5mm, 1k tight weave, unidirectional laid, carbon fiber made for the chassis. it is by far the strongest, best looking carbon fiber i have ever seen. i can stand on it on top of 2 cinder blocks without it hardly bending and i weigh 200 lb. i cut the chassis from the 5mm sheet using a dremel tool only. areas of the chassis have to milled out which i have been able to due using dremel carbide tungsten bits. this carbon fiber is tough. i tried using regular bits to mill out the areas and they just melted. they would get too hot. the carbide bits have held up will though.

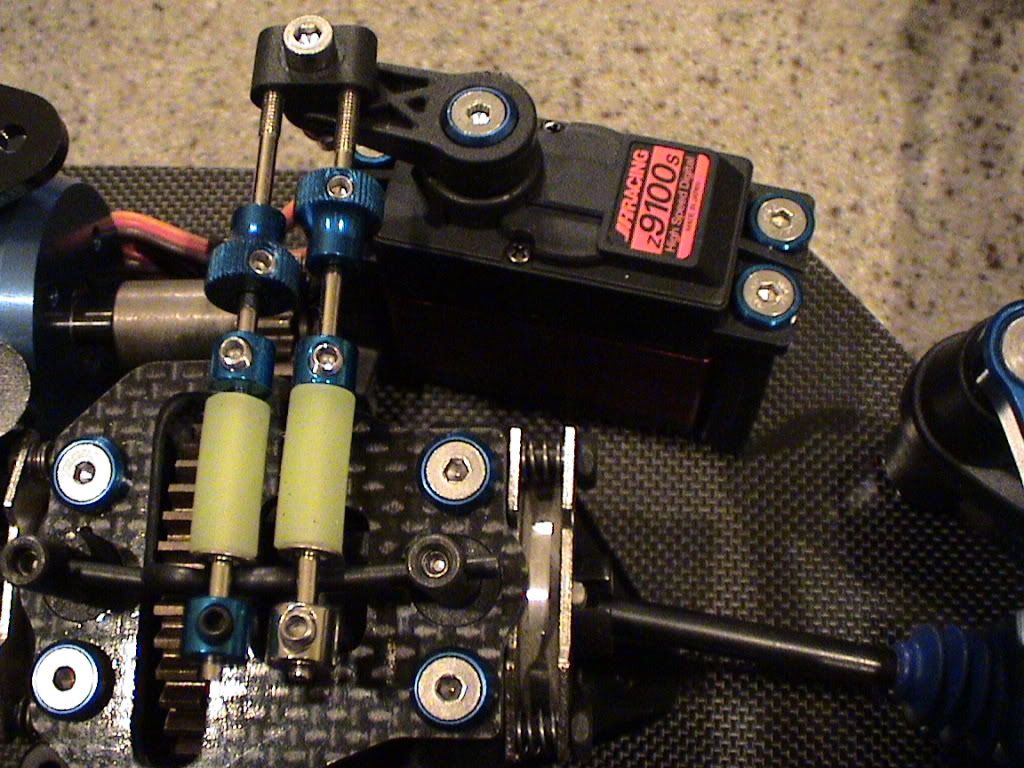

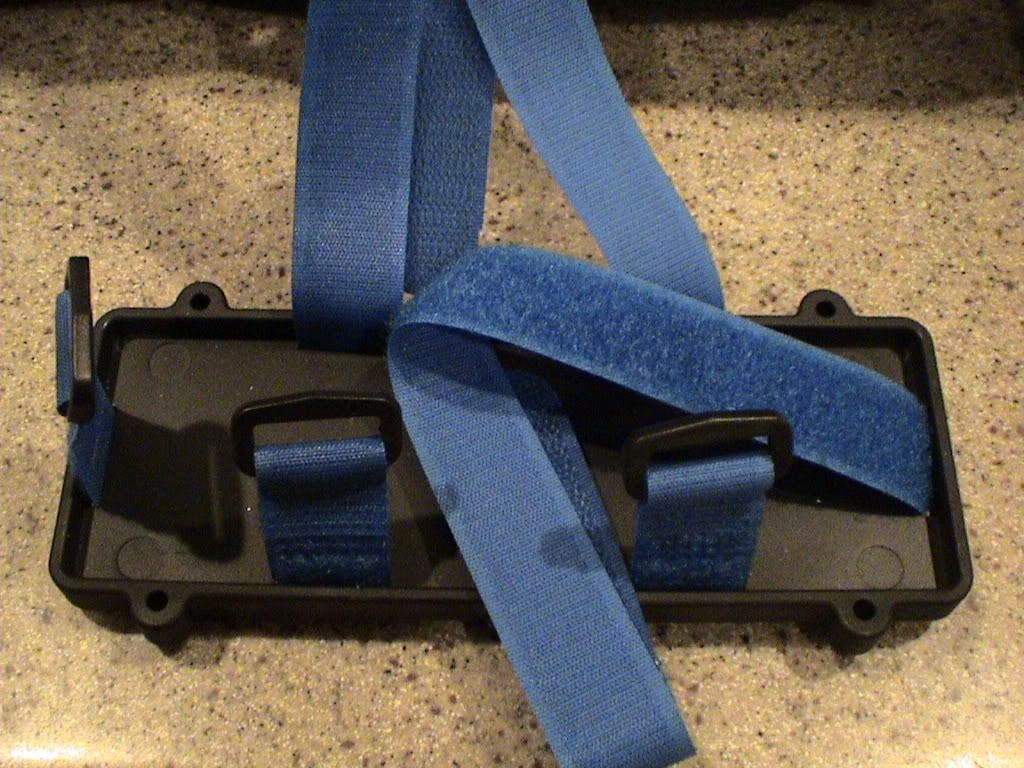

for the conversion i am using Tekno RCs Mugen conversion CVDs, battery tray, radio deck, servo mounts, and motor plates.

due to the layout of the CVDs the stock front chassis brace wouldnt fit so i used the shorter one from the RC8 buggy.

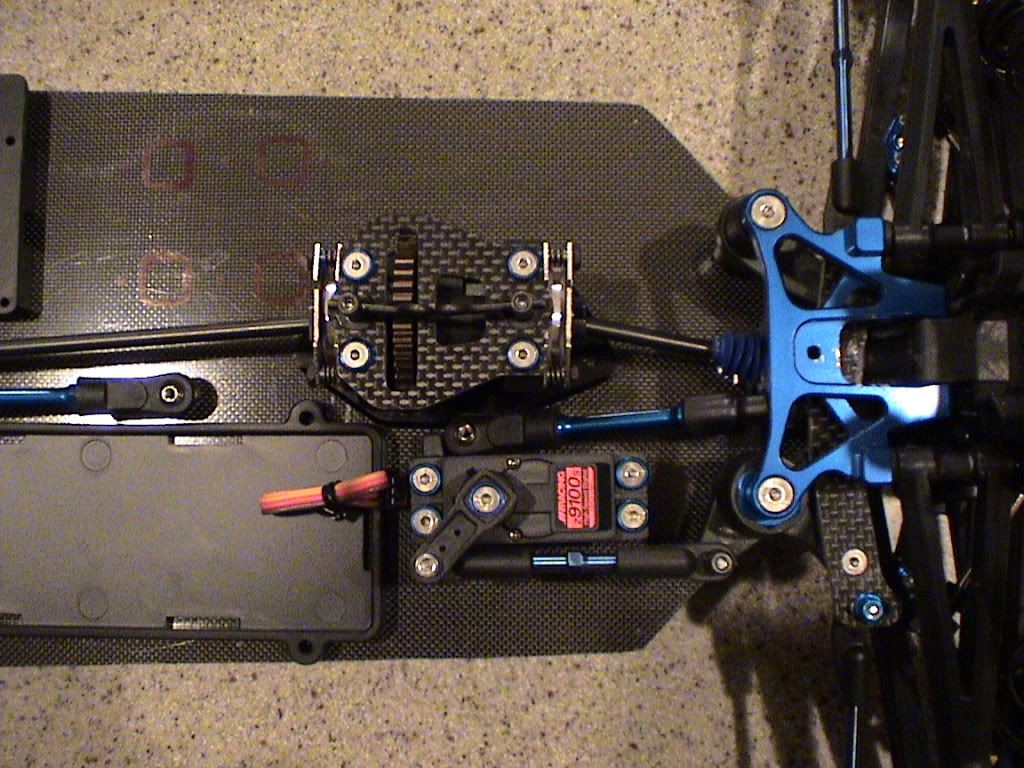

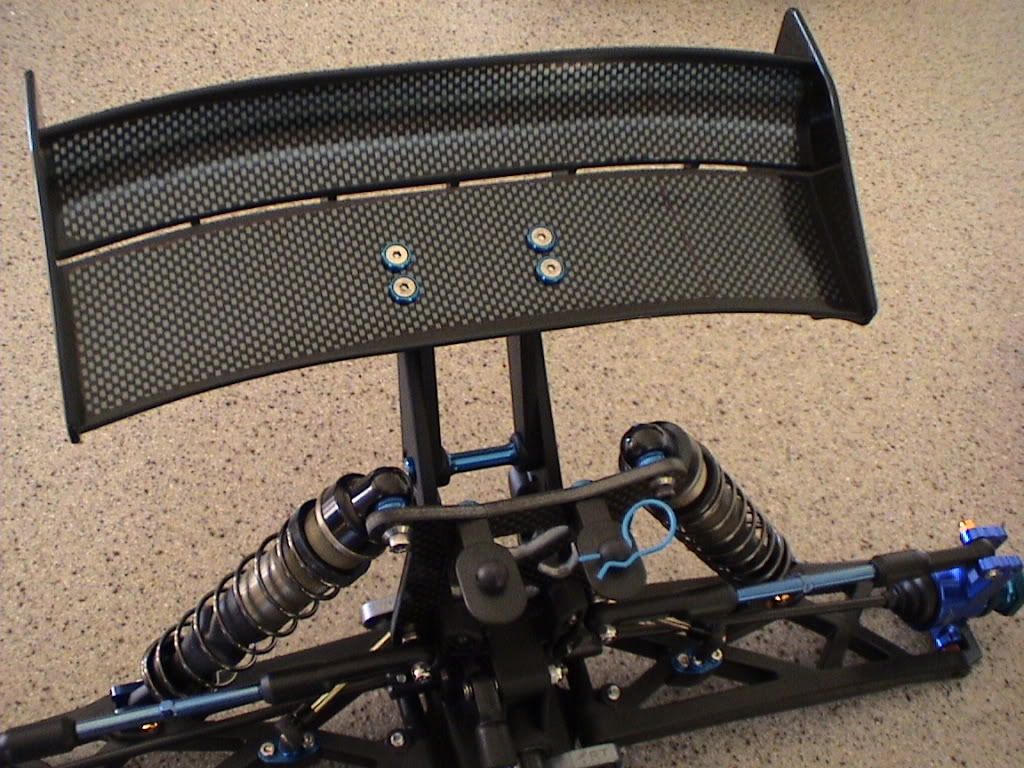

the RC8T has a lot of blue alum. parts on it so i decided to continue with that theme and add a lot of blue upgrades to it. i like how it is turning out so far. not quite done so the pics are of the process so far and i have just laid things out on the chassis so you can see how the setup will be. i will post more of the finished product later. hope you enjoy.

[Ryu James]

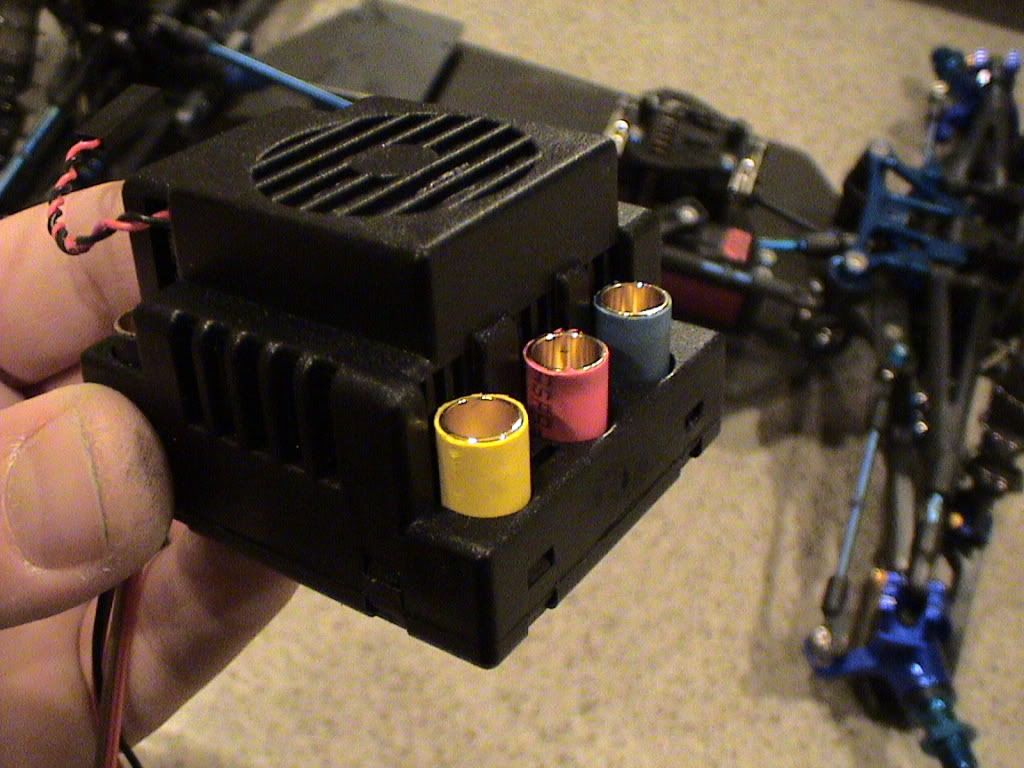

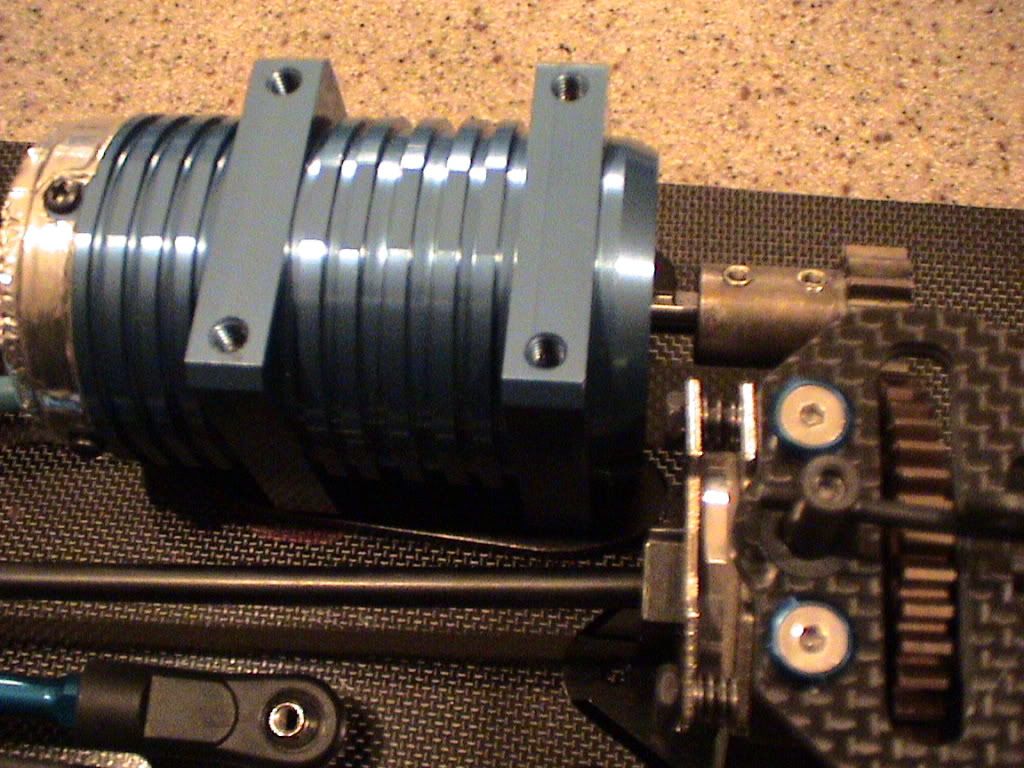

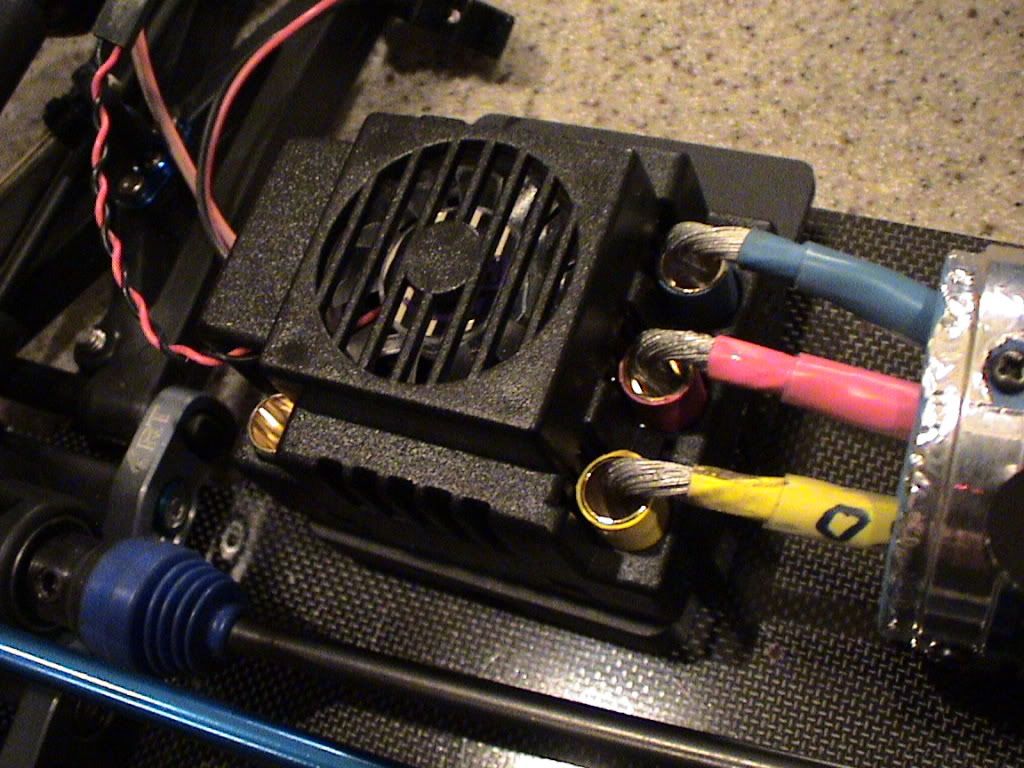

the motor sits very close to the MMM so i am able to solder only one bullet for maximum juice. havent solder the bullets yet but you can get the idea from this pic.

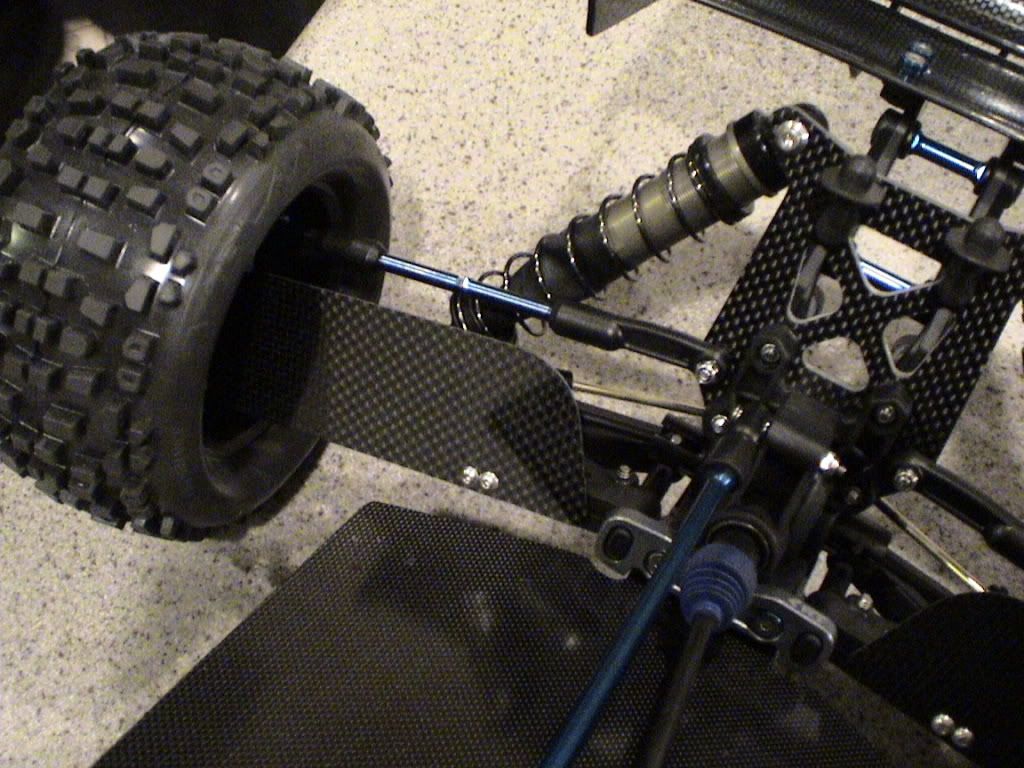

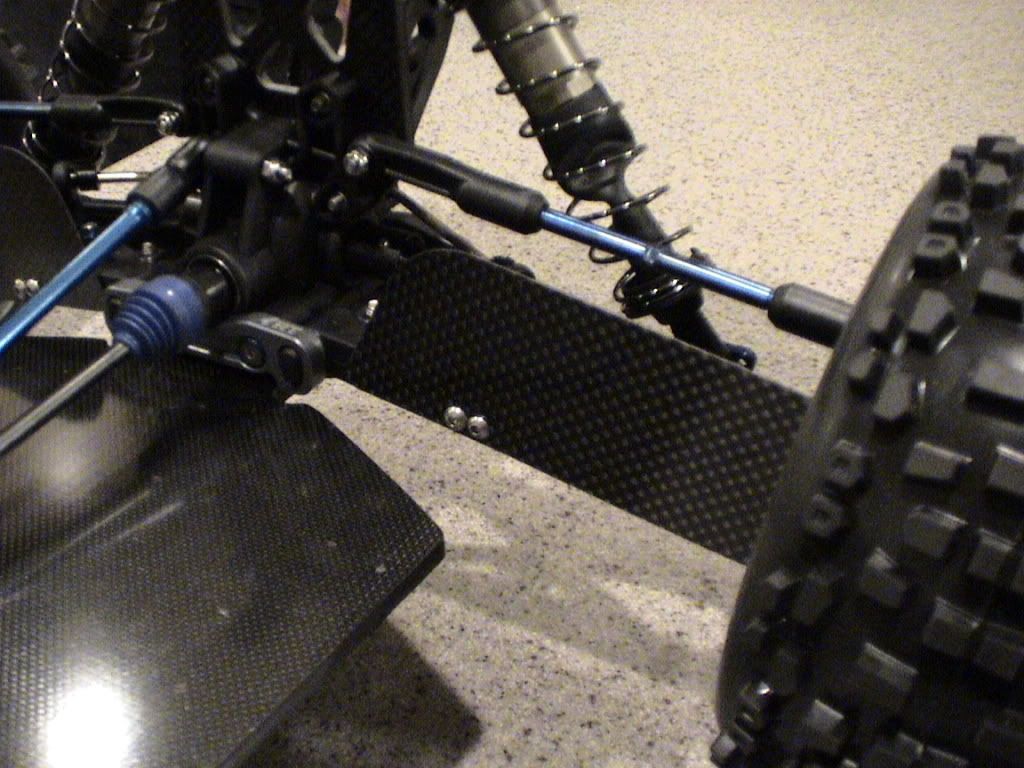

carbon fiber mudguards too! notice how the mudguards are normal weave carbon and see how the chassis' weave is way smaller and tighter. this increases strength tremendously.

[Ryu James]

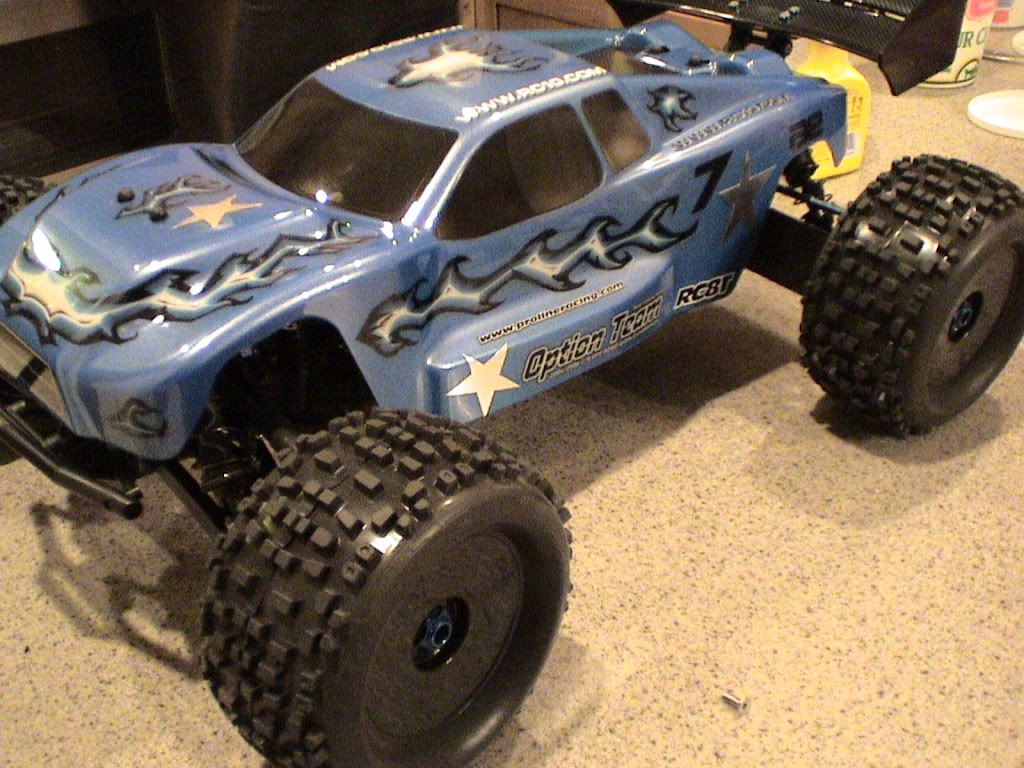

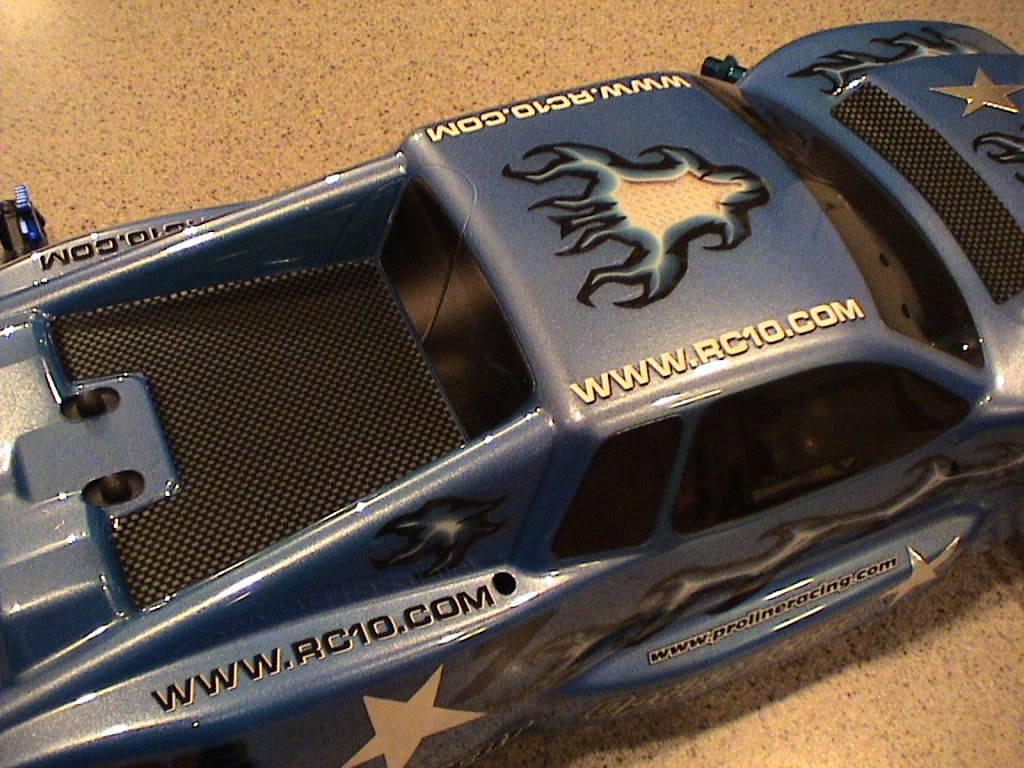

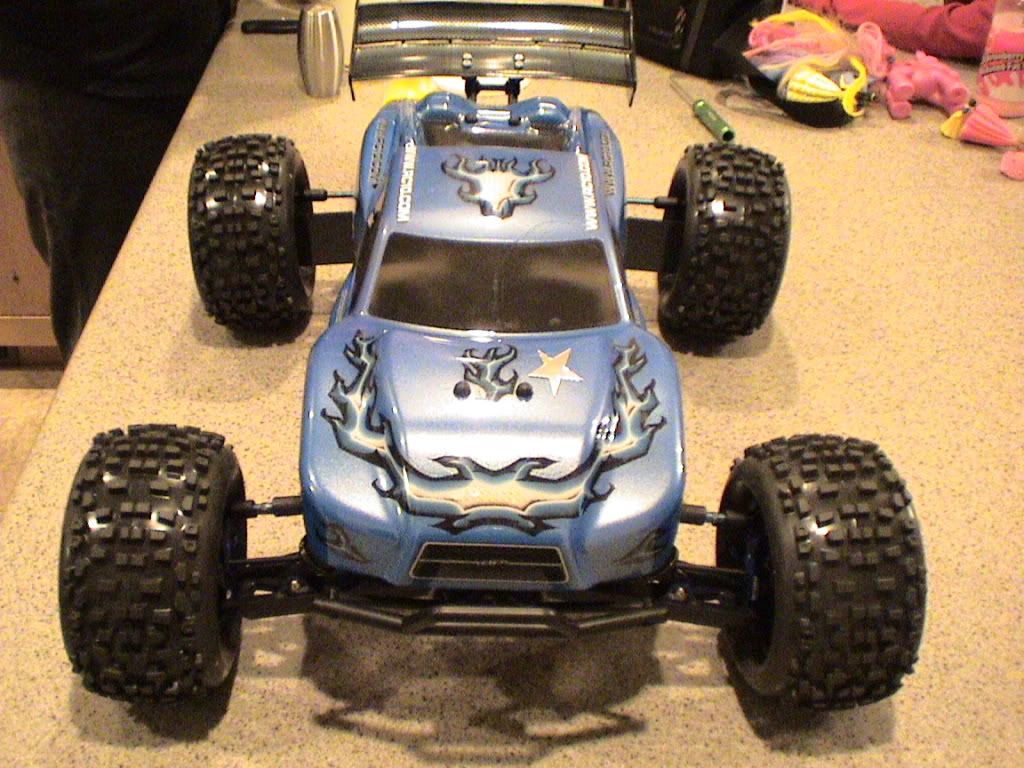

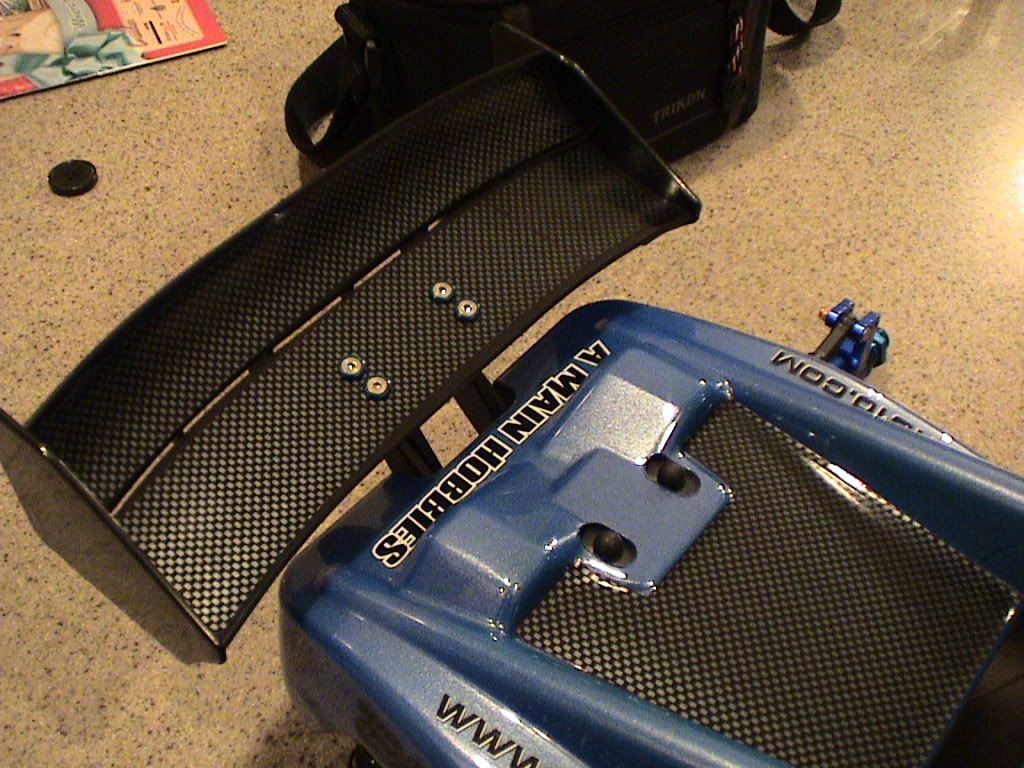

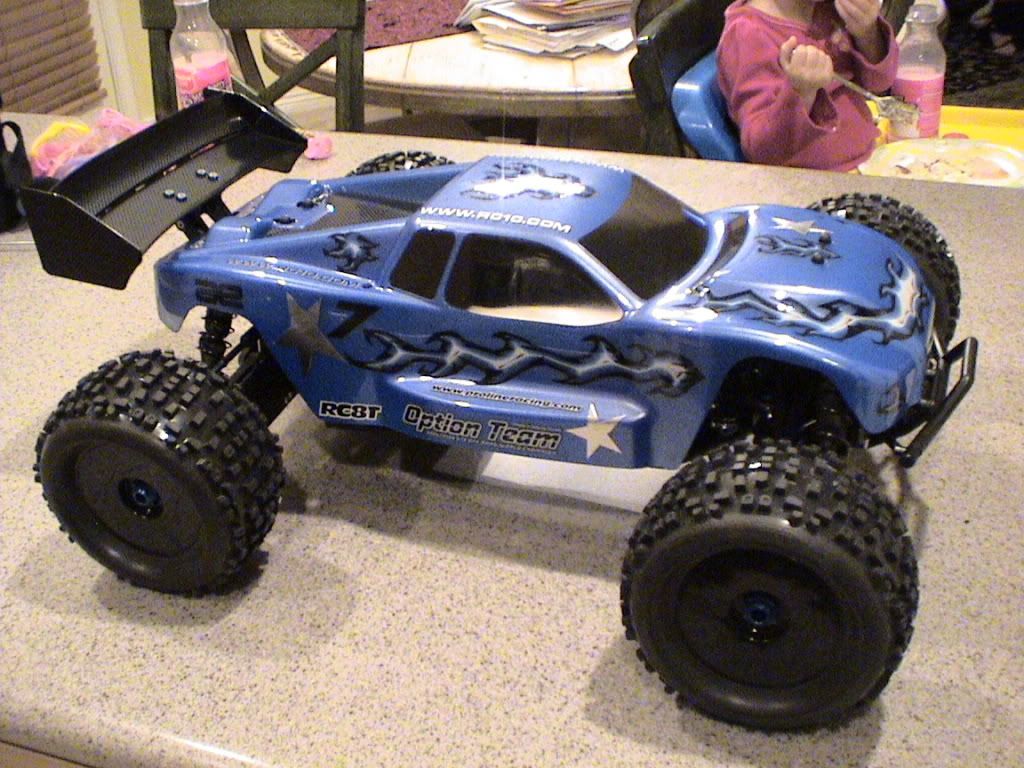

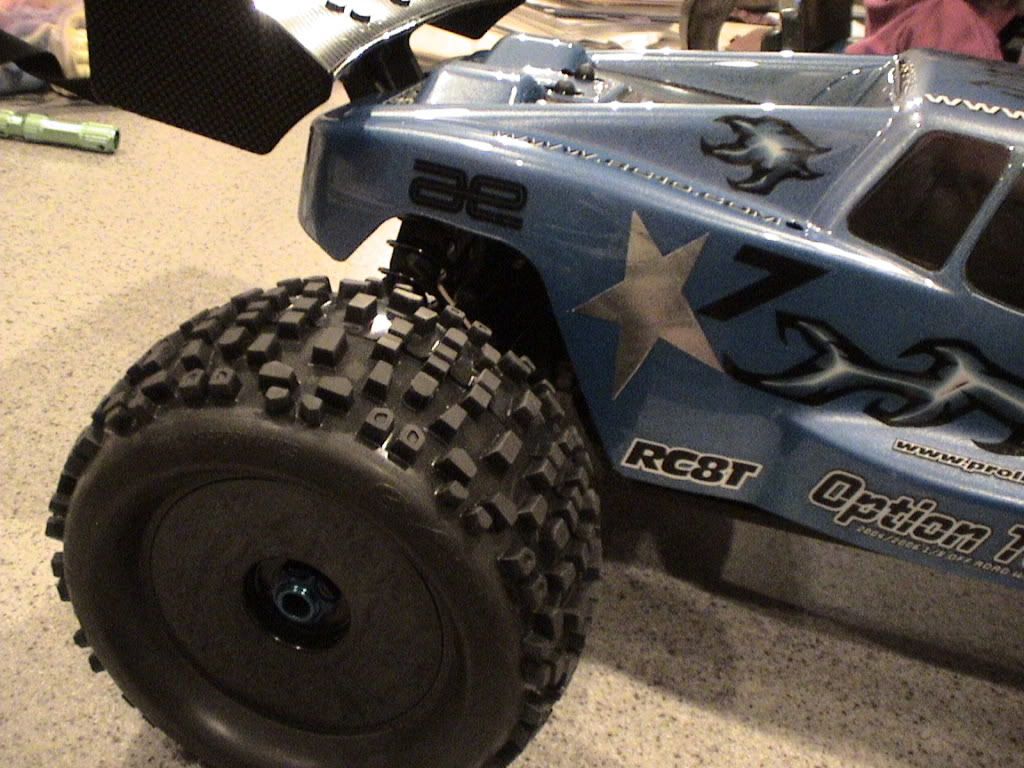

some pics of the body. i am waiting on some scoops from www.oocrcracing.com to add to the body for cooling. check out their site. they are a pretty sweet addition to any body and you dont have to cut stupid holes in random places to keep your gear cool. you actually have functional cooling ducts. be sure to view the gallery.

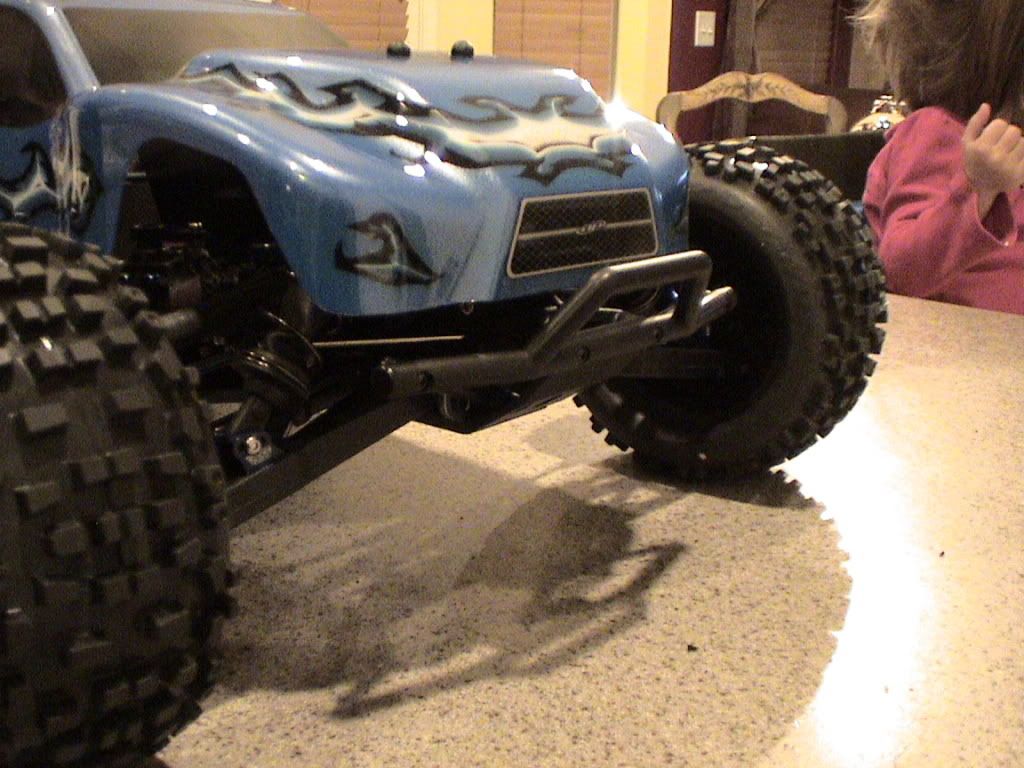

a custom fit front bumper from the Jammin X2
