6S Revo just showing off -Pics-

[Routybouty]

Just showing off my new e-revo to throw yet another motor/batt/esc combo I haven't seen before.

My specs:
6S 5000mah 22.2v 25C TP battery (Left over from my Trex 600) ~$290
Teckno Conversion kit ~$150
Feigao 9XL ~$80
Turnigy Sentilon 100A HV ESC 12s max (Can handle ~4500 watts) ~$100
E-revo beating the nitro guys on the track for 30mins straight...Priceless

Spektrum DX3R
JR 9100T steering
Castle 10 amp Regulator
FoC/Center Diff/Rear brake

Here are some pics of my build and completion:

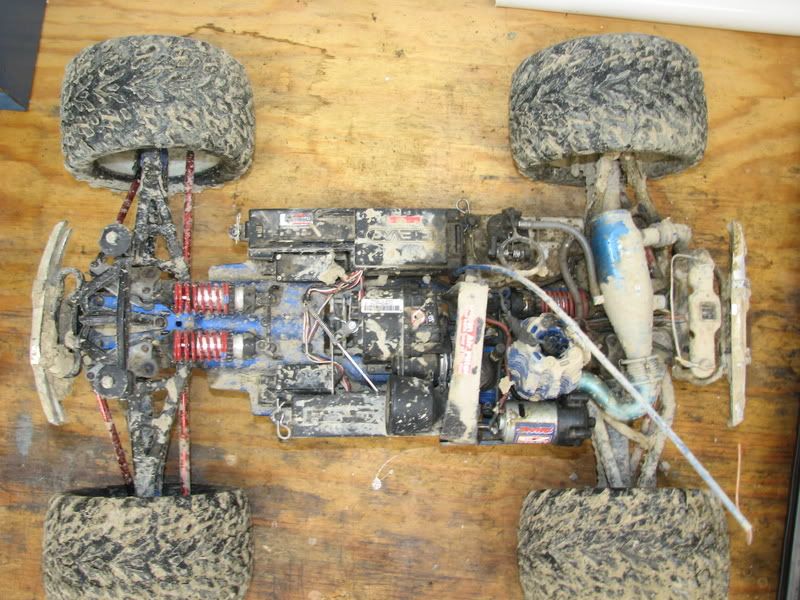

Before

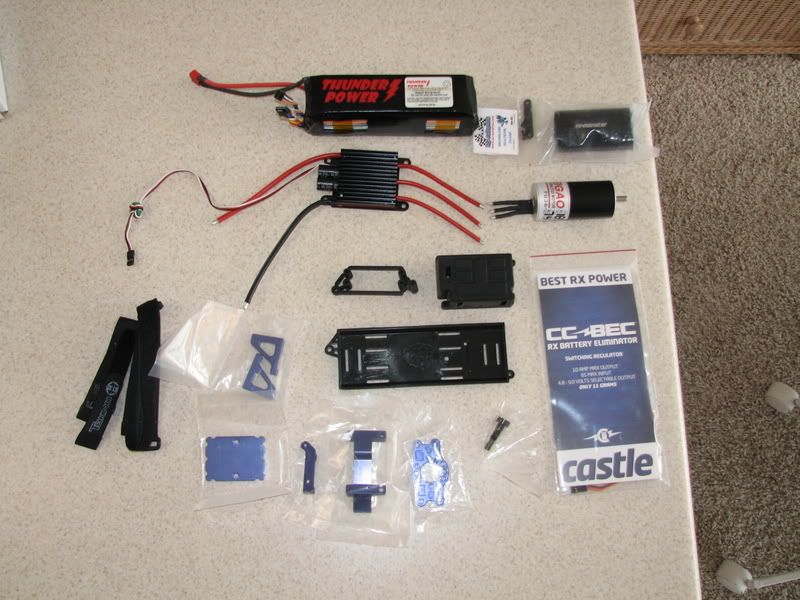

All the goodies

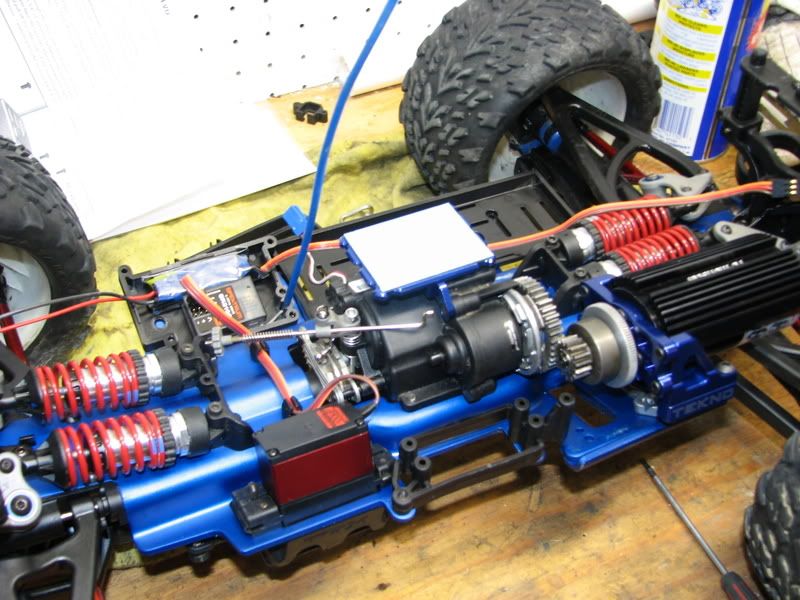

Half way done

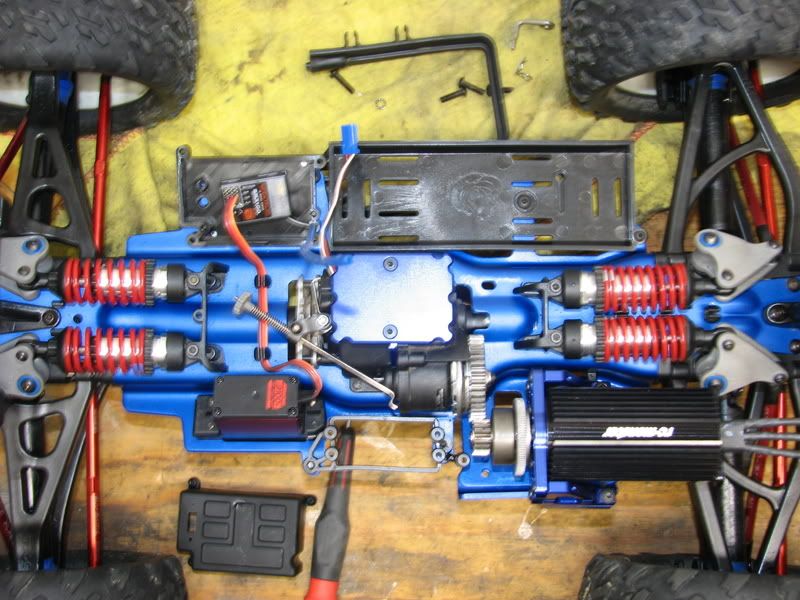

Mostly Done


The big pack

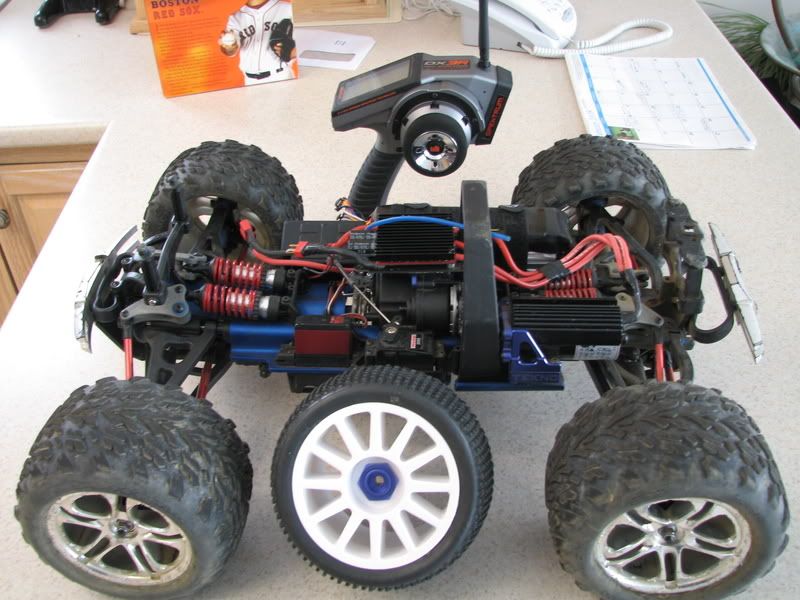

Ta da!!!


I am going to the track tomorrow..12:41am...okay today, i will try to get some video of it. Although, that center diff is way to loose with 100k oil in it. I have some 500k on order should be here tuesday or so and I will post some videos then.

Oh I should add, temps are about 5-15 degrees over ambient for the ESC and about 120-140 on the motor running in ~60 degrees indoor after a 20 min run.
